Features and Specifications
Features:
- Large, Clear Display with Backlighting current temperature, set temperature and time are easy-to-read and all are displayed on the home screen.
- Menu Driven Programming Guides you through the scheduling process, showing only necessary information and choices on each screen.
- Ability to Select Multiple Days allows you to easily customize the thermostat for your unique schedule.
- Real-Time Clock keeps time during power failure; automatically updates for daylight savings.
- Armchair Programming allows you to remove thermostat from wall to set the schedule.
- Precise Temperature Control (+/- 1 F) reliable, consistent comfort.
- Multiple HOLD options allows you to modify schedule indefinitely or for a specific time.
- Change Reminders reminds you to service or replace the air filter, humidifier pad, ultraviolet lamp or thermostat batteries.
- Programmable Fan increases air quality when combined with a whole-house air cleaner.
- Outdoor Temperature Indication (Select Models) shows current outdoor temperature on the display to help you plan outdoor activities.
Specifications:

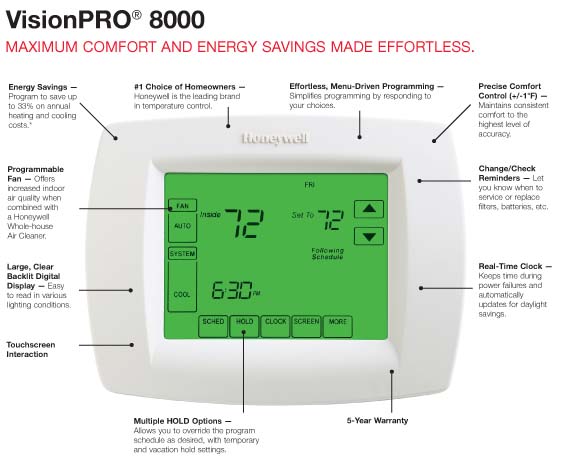

- Description - VisionPRO® Touchscreen 7-Day Programmable 3 Heat/2 Cool Conventional and Heat Pump Thermostat
- Application - Conventional and Heat Pump systems
- Programmability - Universal Programming from 7 Day to Non-Programmable
- Changeover - Auto/Manual Selectable
- Color - Premier White®
- Switch Positions (System) - HEAT-OFF-COOL-AUTO-EM.HEAT
- Switch Positions (Fan) - AUTO-ON-CIRC
- Power Method - Battery or Hardwired
- Terminal Designations - R, RC, W (O/B), W2 (AUX), Y, Y2, L, E, G, C, S1, S2
- Dimensions (in.) - 4 9/16 in. high x 6 in. wide x 1 1/4 in. deep
- Mounting - Horizontal
- Frequency - 50/60 Hz
- Setting Temperature Range (F) - Heat: 40 F to 90 F; Cool: 50 F to 99 F
- Differential Temperature (F) - ± 1 F
- Stages - Up to 3 Heat/2 Cool
- Outdoor/Remote Sensor - Yes, optional outdoor or indoor remote
- Sensor Element - Thermistor
- Heat/Cool Current - 1.0 A running
- Fan Current - 0.6A running
- Operating Humidity Range (% RH) - 5 to 90% RH, non-condensing
- Comments - The L terminal is an input or output.
- Display Size - 10 sq. in.
- Voltage - 20 to 30 Vac or 750 mV
