Features and Specifications
Specifications:
- Application - Conventional and Heat Pump systems
- Changeover - Auto/Manual Selectable
- Switch Type - Relay
- Accuracy (F) - ±1 F
- Color - Premier White®
- Switch Positions (System) - HEAT-OFF-COOL-AUTO-EM.HEAT
- Switch Positions (Fan) - AUTO-ON
- Power Method - Battery or Hardwired
- Terminal Designations - Rc, R, W (O/B), W2 (AUX), Y, Y2 (E), G, L, C
- Dimensions (in.) - 3 9/16 in. High X 5 13/16 in. Wide X 1 1/2 in. Deep
- Mounting - Horizontal
- Frequency - 50/60 Hz
- Setting Temperature Range (F) - Heat: 40 F to 90 F; Cool: 50 F to 99 F
- Stages - Up to 2 Heat/2 Cool
- Sensor Element - Thermistor
- Heat/Cool Current - 0.02 A to 1.0 A running
- Fan Current - 0.02 A to 0.5 A running
- Operating Humidity Range (% RH) - 5 to 90% RH, non-condensing
- Comments - Standard Display
- Display Size - 3.75 sq. in.
- Voltage - 20 to 30 Vac or 750 mV

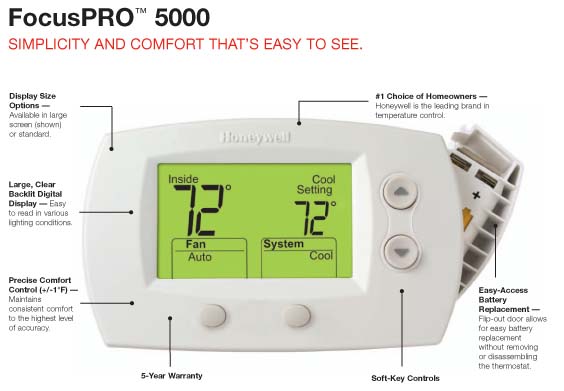

Features:
- Non-programmable digital thermostat.
- Large, clear, backlit display - easy to read in various lighting conditions.
- Display size options - available in large screen or standard.
- Precise comfort control (+/- 1º F) - maintains consistent comfort to the highest level of accuracy.
- Easy change battery door - flip out door allows for easy battery replacement without removing or disassembling the thermostat.
- 5-year limited warranty.
