Ruud UPRL Series
The Copeland Two-stage Scroll Compressor
The UPRL Series Ruud 16 SEER heat pump condensers represent the latest generation design, packed with high technology features -- Like the Copeland Scroll compressor, absolutely the smoothest, quietest, most durable compressor ever developed. Because it has fewer moving parts, there is very little to wear out. In fact, over time this compressor actually “wears in” and becomes more efficient. Scroll Details
The Environmentally-Friendly R-410a Refrigerant provides additional peace of mind because your new system won't harm the environment and meets the standards set by the federal government. The cost of service will potentially be reduced in the future as older refrigerants (R-22) are gradually phased out through federally legislated production limitations.
Two-Stage Cooling Function means that your system will spend about 80% of the time operating in low-speed cooling, The system will operate for longer periods in a super efficient mode resulting in lower operating noise, better humidity control, and less variation in temperature throughout your home. You will experience comfort like never before.
Make An Investment In Savings With Efficient performance
The Ruud super efficient heat pumps feature SEER ratings of 16, making it one the most energy efficient choices for home comfort. Compared with a 15 year old system, you could save up to 55% on your energy bill.
Here's a savings example for a 3 ton system:
Annual operating costs for a 15 year old, 8 SEER system--$810.00*
Annual operating costs for a Ruud 16 SEER system---$396.00*
If you live in very warm climate your savings could be even greater.

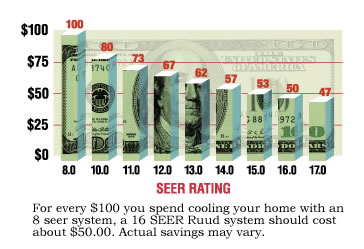

SEER stands for Seasonal Energy Efficiency Ratio. SEER gives an indication of the energy efficiency of the system. The higher the SEER, the more efficient the unit. And, the more efficient the unit, the lower your energy costs.
When you purchase a system with a high SEER, you'll use less energy to cool your house, resulting in lower electric bills. In many cases, these savings are enough to partially or fully offset the cost of the new equipment within a few years.
HSPF provides an efficiency rating for the heating capacity of a heat pump. HSPF stands for Heating Seasonal Performance Factor. This is a comparison of the heating efficiency and with ratings of up to 9.5, the Ruud UPRL series heat pump systems far exceed the federal minimum.
The UPRL series 16 seer Ruud heat pump air conditioning system can lower your energy costs by 50% or more when compared to an 8 seer/5.6 HSPF system.
* Based on .10 cents average per Kilowatt Hour and 1800 annual operating hours
Quiet comfort
The Ruud 16 SEER super efficient heat pump operates at one of the lowest sound levels available.
Here's why :
- One-piece top with Drawn Fan Orifice ensures lower air turbulence
- Pedestal Base reduces vibration
- Built-in line muffler reduces compressor sound
- Two-Stage Copeland Scroll Compressor is among the quietest ever made
The last thing you want is to hear a noisy air conditioner starting up at night. Ruud understands and builds each unit to ensure that your air conditioning won't interfere with a good night's sleep.
Comfort Control System - A Ruud Exclusive
The Comfort Control System provides:
- On-Board diagnostics - The Ruud exclusive 7-Segment LED Display on the control board quickly and accurately shows your contractor the source of system malfunctions. This feature aids in the servicing or repair of your unit, saving you time and money.
- Fault Recall - Even if there is a power failure, this feature will retain the system's "operation history" and will display it on the control board for quick and easy viewing during service calls.
- Active Protection - This feature monitors your system to prevent the compressor from operating when potentially harmful conditions are detected.
- Increased Reliability - The thermostat communication capability can alert you to any necessary service requirements, giving you peace of mind that your home comfort is assured.
These are features not offered on most competitive systems. For a full list of system features and exclusive benefits view the full data sheet.
Durable construction
Materials for all components are factory tested and engineered for long-lasting performance and reliability.
- Durable full metal jacket protects the coil
- Compressor Cycle Protection prevents unnecessary wear and tear
- Satin-Finished Pre-coat paint provides durability and long lasting protection
- Unit is finished in a 1000-hour salt spray treatment -- Up to 50% more durable
- The Copeland Scroll Compressor is the most durable ever created
- High and low pressure switches provide an unusually high level of protection
- Copper tube with aluminum fin coil contruction for greater heat transfer and increased life
- Drawn, painted base pan for extra corrosion resistance and sound reduction
- Exclusive Combination Grille/Motor Mount secures the motor to the underside of the discharge grille. The grille protects the motor windings and bearing from the elements
- A sealed switch replaces the standard contactor and features optical control and latching mechanism. This prevents chatter and increases durability
- Built-in short-cycle protection allows the compressor to restart easily without oil removal
- A manual push-button is offered to operate the fan and compressor for 5 seconds to allow for an operation check
Improved air quality
The variable speed air handler that is matched with this system is not only among the quietest made but can significantly reduce air conditioning humidity levels in your home. And, when you add one of our whole-house air cleaners to your system, you will experience a reduction in dust, pollen and other allergens throughout your entire home resulting in a cleaner, healthier, more comfortable home.
Affordable and Efficient Performance
Don't let the affordable price tag fool you– Buying direct eliminates many layers of overhead from your purchase and Ruud is a leader in home heating and cooling systems with over 100 years of experience.
In fact, the leading consumer advocacy group awarded the Ruud Brand a top quality rating for durability. Quality claims are a dime a dozen but Ruud's dependability is documented and reflects a quality commitment rarely matched in the industry today.
* The manufacturer requires that the system be started up and checked by a licensed ac contractor prior to use to validate system warranty and comply with EPA refrigerant handling laws.
Plus, to save costs at installation time, the Ruud heat pump condensers are pre-charged with R-410A refrigerant for up to 15-20 feet of tubing. The new UPRL series super efficient Ruud heat pump air conditioners offer affordable, reliable, and quiet operation you can count on year after year.
R-410a Refrigerant - Environmentally Friendly
Your new Goodman 16 SEER seer air conditioning system is not only easy on your wallet, but is also easy on our environment. Since this refrigerant does not contain Chlorine, it is more environmentally friendly than R-22 refrigerant, the refrigerant currently used in most air conditioning systems. Introduced as the alternative to R-22, R-410a has helped increase the durability and reliability of air conditioning compressors.
Additional Outstanding Features
- Industry leading 10 year warranty on all parts
- The coil is a rifled, refrigeration-grade copper tube and aluminum fin construction for maximum durability and heat transfer.
- All Goodman heat pump condensers are designed for ground level or rooftop mounting with bottom pan rails to elevate the unit away from moisture.
- The maintenance-free condenser fan motor is totally enclosed and permanently lubricated. Plus, the built-in filter dryer removes potentially harmful moisture from the system, providing protection from contaminants
- Goodman doesn't cut corners on the cabinet either – it is constructed from heavy-gauge, zinc-clad G90 galvanized steel and is designed to help prevent damage from yard debris and the elements. The special polyester powder paint finish is “baked-on”, providing an extra measure of protection for years of long-lasting good looks. This construction design looks great in any architectural environment.
- These high-quality components ensure that your new Goodman heat pump system will comfortably heat and cool your home for years to come.
Copeland Scroll Compressor Details
Once in a while, a new technology is developed that gains widespread acceptance through superior function and design;
the Copeland Scroll Compressor has gained respect and industry-wide acceptance through time-tested field use and not from laboratory theory.
The Copeland Scroll Compressor has proven itself to be the quietest and most dependable ever created.
Here's why:
The Copeland Scroll technology is based on the concept of compliance.Two scroll members interact to simultaneously achieve high efficiency and durability.
This efficient twisting motion greatly reduces the numbers of parts that can fail while eliminating the inefficient up and down piston motion of ordinary compressors.
This unique and patented approach. achieving both radial and axial compliance - provides important advantages:
- Continuous flank contact, maintained by centrifugal force, minimizes gas leakage and maximizes efficiency.
- Radial compliance allows the scroll members to separate the presence of liquid refrigerant or debris, thereby substantially improving durability and reliability.
- Axial compliance allows the scroll to remain in continuous contact in all normal operating conditions, ensuring minimal leakage without the use of tip seals.
- Both radial and axial compliance allow the scroll members to actually wear in rather than wear out.
Best-in-the-Business Warranties
When a complete heating and cooling system is truly built to exacting standards of quality and durability, the manufacturer's confidence shows in its warranty.
Ruud and AC Direct provide a:
ORDER NOW!!!
- One UPRL Series Ruud 16 SEER heat pump condenser with two-stage compressor
- One UHPL Series factory matched Ruud variable speed air handler with TXV
- One supplemental heating element up to 15kw
- FREE Shipping
- FREE installation guides
Under the terms of all manufacturer's warranty and to comply with federal refrigerant handling laws, it is required that the system be checked, started up and signed-off on by a licensed air conditioning/heating contractor prior to use. Failure to comply with this provision will void all factory warranties. Keep a copy of the installation ticket for your records. Please ensure that all supply and return ductwork is properly sized and that a permit is obtained (where required). Always conform with applicable local and state codes. Electrical connections should only be made by a licensed electrical contractor. Unqualified persons should never attempt installation of this or any HVAC system.
The Ruud Corporation
A 100-Year Tradition of Reliability
More than 100 years ago, Edwin Ruud, a Norwegian mechanical engineer, came to America and developed the first successful automatic water heater. That early success marked the beginning of a tradition of innovation and value that led to the introduction of RUUD heating and air conditioning equipment in the 1950s.
Since then, the RUUD Air Conditioning Division has grown into one of North America's largest manufacturers of quality cooling and heating products for residential and light commercial use.
Today, RUUD operates two manufacturing facilities in Arkansas and Georgia - both employing highly trained workers and state-of-the-art equipment. These facilities offer more than two million combined square feet of manufacturing, research and development, and office space. Over the years, the product lines have expanded, changed, and improved significantly as new design techniques and better manufacturing technologies have become available.
What remains unchanged throughout RUUD's history is their commitment to producing the most reliable, long-lasting, efficient equipment you can buy.
HERE IS YOUR WARRANTY COVERAGE!
COMPONENT
- COMPRESSOR
- ALL OTHER PARTS
PARTS √
- 10 Years
- 10 years
*Labor is not covered under the terms of the manufacturer's warranty
* This unit is not approved for use in mobile homes
Under the terms of all manufacturer's warranty and to comply with federal refrigerant handling laws, it is required that the system be checked and started up and signed-off on by a licensed air conditioning/heating contractor prior to use. Please ensure that all supply and return ductwork is properly sized and that the installation is permitted (where required) and conforms with local and state codes. Electrical connections should always be made by a licensed electrical contractor.
| | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

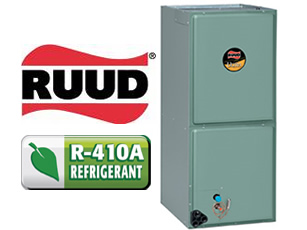

The Ruud UHPL series variable speed air handler provides whisper-quiet air delivery thanks to the General Electric variable speed DC motor. By “ramping up” slowly at startup, this motor completely eliminates the harsh “impact” noises created by full speed startup in ordinary air handlers.
