Top Rated Quality - 7 Years Running
If rugged dependability is high on your list, the Ruud 14AJM Air Conditioner simply can't be beat.
Since 2003 the leading consumer group has given Ruud the highest rating available for dependability and customer satisfaction. And that hasn't changed for 2011. The same consumer group has once again rated the Ruud brand the most reliable you can buy. Period.
We believe that the Ruud line of quality air conditioners is the best and most dependable you can buy. We base that on years of experience with these air conditioners and feedback from our customers.
They may be a few hundred dollars more than some of the ordinary brands but we think they're worth every penny of the additional cost. Compare the Ruud features and rugged construction to any ordinary air conditioning system and you'll see a visible difference that doesn't require an expert eye. Quite simply, the build quality is apparent the moment you remove the box.
The Environmentally-Friendly R-410a Refrigerant provides additional peace of mind because your new system won't harm the environment and meets the standards set by the federal government.
The cost of service will potentially be reduced in the future as older refrigerants (R-22) are gradually phased out through federally legislated production limitations.
Industry Leading Quality
The quality of this outdoor condensing unit is apparent the moment you remove the carton.
The tough, protective cabinet features electro-statically applied paint that is then baked for long lasting good looks and protection. Yard debris and severe weather are no match for this solid, durable cabinet, featuring a steel reinforced top for maximum strength.
The 14AJM series also feature a special sound-reducing package consisting of a PSC, 4 blade, 8-pole fan motor and discharge line muffler. The result? Quiet and smooth operation so you and your neighbors can rest easy.
Ruud uses only a heavy gauge copper and aluminum fin coil construction for maximum heat transfer and efficiency. This coil is designed to resist the elements and remain leak free year after year.
Ruud installs protective high and low pressure controls to prevent damage to the compressor from pressure extremes. Why settle for less than the absolute highest measure of protection for your new system?
This Ruud condenser is designed for ground level or rooftop mounting and is pre-charged with R-410a refrigerant.
* The manufacturer requires that the system be started up and checked by a licensed ac contractor prior to use to validate system warranty and comply with EPA refrigerant handling laws.
Make An Investment In Savings With Efficient performance
The Ruud 14AJM series feature SEER ratings of 16 when matched to the RHLL Ruud air handler, making it an energy efficient choice for home comfort. Compared with a 15 year old system, you could save 50% or on your energy bill.
Here's a savings example for a 3 ton system:
Annual operating costs for a 15 year old, 8 SEER system--$972.00*
Annual operating costs for a Ruud 16 SEER system---$486.00*

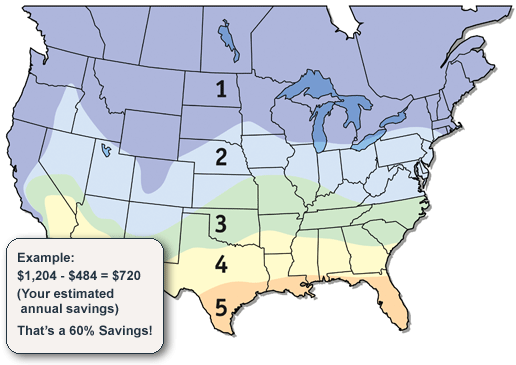

If you live in very warm climate your savings could be even greater.

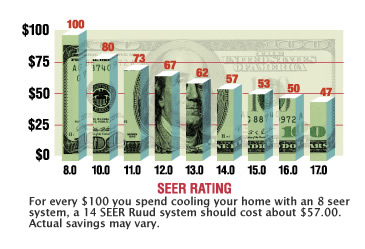

SEER stands for Seasonal Energy Efficiency Ratio. SEER gives an indication of the energy efficiency of the system. The higher the SEER, the more efficient the unit. And, the more efficient the unit, the lower your energy costs.
When you purchase a system with a high SEER, you'll use less energy to cool your house, resulting in lower electric bills. In many cases, these savings are enough to partially or fully offset the cost of the new equipment within a few years.
* Based on .10 cents average per Kilowatt Hour and 1800 annual operating hours
Quiet comfort
The Ruud 14AJM air conditioner operates at very low sound levels.
Here's why :
- One-piece top with Drawn Fan Orifice ensures lower air turbulence
- Pedestal Base reduces vibration
- Built-in line muffler reduces compressor sound
- Two-Stage Copeland Scroll Compressor is among the quietest ever made
The last thing you want is to hear a noisy air conditioner starting up at night. Ruud understands and builds each unit to ensure that your air conditioning won't interfere with a good night's sleep.
Durable construction
- Durable full metal jacket protects the coil
- Powder coat paint provides durability and long lasting protection
- Unit is finished in a 1000-hour salt spray treatment -- Up to 50% more durable
- Low pressure switch provides an unusually high level of protection
- Copper tube with aluminum fin coil construction for improved heat transfer
- Drawn painted base pan for superior corrosion resistance
- Hard start components for reliable startup under varying electric conditions
- Bi-directional filter drier protects the system from contaminants
Ruud has created a specially designed drain pan that provides for more complete condensation removal, preventing the build-up of mold and mildew within the system. And, when you add one of our whole-house air cleaners to your system, you will experience a reduction in dust, pollen and other allergens throughout your entire home resulting in a cleaner, healthier, more comfortable home.
Top Rated Quality From The Leading Consumer Advocacy Group
Don't let the affordable price tag fool you - Buying direct eliminates many layers of overhead from your purchase and Ruud is a leader in home heating and cooling systems with over 100 years of experience.
In fact, the Ruud Brand has been awarded a top quality rating for durability by the leading consumer advocacy group for the last 7 years. Quality claims are a dime a dozen but Ruud's dependability is documented and reflects a quality commitment rarely matched in the industry today.
* The manufacturer requires that the system be started up and checked by a licensed ac contractor prior to use to validate system warranty and comply with EPA refrigerant handling laws.
Plus, to save costs at installation time, the outdoor unit is pre-charged with R-410a refrigerant for up to 15-20 feet of tubing.
ORDER NOW!
- One outdoor Rheem air conditioner condensing unit Model #14AJM30A01 R-410a refrigerant.
(16 seer system when matched to RHLL indoor air handler) - One factory matched high efficiency indoor air handler Model #RHLL-HM3617JA
- One electric heat strip up to 15Kw (10Kw max on 1.5 and 2.0 ton)
- FREE Shipping ... Continental United States
- FREE Installation Guides ... Provided with all equipment purchases
* This equipment is not approved for mobile homes
Under the terms of all manufacturer's warranty and to comply with federal refrigerant handling laws, it is required that the system be checked, started up and signed-off on by a licensed air conditioning/heating contractor prior to use. Failure to comply with this provision will void all factory warranties. Keep a copy of the installation ticket for your records. Please ensure that all supply and return ductwork is properly sized and that a permit is obtained (where required). Always conform with applicable local and state codes. Electrical connections should only be made by a licensed electrical contractor. Unqualified persons should never attempt installation of this or any HVAC system.
The Rheem Corporation
Rheem Manufacturing Company was established in the mid-1920s when brothers Richard and Donald Rheem acquired a galvanizing plant in San Francisco, California. In the 1930's, Rheem began manufacturing water heaters, and by 1936 had coast to coast distribution.
During the 1940s and 1950s, the company increased its product line to include space heating units for homes, oil furnaces and air conditioners.
In 1959, Rheem acquired Ruud Manufacturing Company, a pioneer in the water heating industry with a well-regarded product line and a distribution network throughout North America.
In subsequent years, Rheem entered the heating and air conditioning market and expanded in the late 1960's and 1970's with the rapid growth of the central air conditioning industry.
In 1985, the company acquired Raypak, a leading producer of copper tube boilers used for swimming pool heating and commercial hot water supply and hydronic heating.
A Leading Global Producer of Efficient Heating, Cooling & Water Heating Products
Respected For Reliability, Rheem is an industry leader for total heating, cooling and water heating solutions. In fact, Rheem is the only brand with product offerings covering residential and commercial heating, cooling, conventional and hybrid storage-style water heaters, tankless water heaters, solar water heating systems, hydronic and geothermal systems, indoor air quality accessories, and replacement parts for all categories – making Rheem a one-stop Air and Water comfort solutions provider.
All Rheem products meet or exceed rigorous industry and regulatory standards for quality, reliability, efficiency, and air & water quality.
From design and fabrication to finished product assembly, each phase in the manufacturing process is rigorously monitored and measured to ensure the highest quality , durability and operating excellence.
Rheem products are routinely tested and certified by various government and third-party testing labs to ensure quality standards.
Rheem is headquartered in Atlanta, Georgia. It manufactures in Fort Smith, Arkansas; Montgomery, Alabama; Oxnard, California; Acadia, Florida; and Eagan, Minnesota. All manufacturing facilities are ISO 9001 certified.
Rheem operates a state-of-the-art Parts Distribution center in Randleman, NC and distribution facilities throughout the US and in Hamilton and Mississauga, Ontario, Canada. Rheem also has an international presence in countries such as Australia, Canada, Mexico, Brazil and Singapore.
HERE IS YOUR WARRANTY COVERAGE!
COMPONENT
- COMPRESSOR
- ALL OTHER PARTS
WARRANTY √
- 10 Years
- 10 years
* Labor is not covered under the terms of the manufacturer's warranty
*Online registration required for 10 year warranty
Under the terms of all manufacturer's warranty and to comply with federal refrigerant handling laws, it is required that the system be checked and started up and signed-off on by a licensed air conditioning/heating contractor prior to use. Please ensure that all supply and return ductwork is properly sized and that the installation is permitted (where required) and conforms with local and state codes. Electrical connections should always be made by a licensed electrical contractor.
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
The Ruud RHLL
The RHLL series factory matched Ruud air handler with earth friendly R-410a refrigerant is the answer to superior heating and cooling performance. For quiet performance, improved humidity control and greater comfort in both heating and cooling this air handler simply out-performs the competition.
This indoor air handler features GE’s new X-13 (ECM) motor which provides enhanced SEER performance with most Ruud outdoor units.
An air handler is comprised of an evaporator coil and a blower, which circulates cooled or heated air throughout your home. The Ruud RHLL series air handlers are easy to install, and what's more, they provide years of quiet and dependable operation.
Durable Construction
Standard Ruud air handler quality features include:
- Sturdy construction with 1.0" of reinforced foil-faced insulation
- Rugged steel wall cabinet construction for added strength
- Copper tube and aluminum fin coils
- Molded polymer corrosion resistant drain pan
- Transformer and blower time delay for maximum efficiency
Improved air quality
The air handler that is matched with this system is not only among the quietest made but can significantly reduce mold and mildew build-up within the system.
Ruud has developed a specially designed drain pan that provides for more complete condensation removal, preventing the build-up of standing water.
And, when you add one of our whole-house air cleaners to your system, you will experience a reduction in dust, pollen and other allergens throughout your entire home resulting in a cleaner, healthier, more comfortable home.
Flexible installation Design
The Ruud air handler is versatile and can be installed as an upflow (ductwork above the air handler), downflow (ductwork under the air handler), and horizontally (air handler in an attic, crawlspace, or basement).
If you are capable, you can do most of the installation yourself and then set up a service call for a professional to come and open the refrigeration system and check the charge.
Any qualified air conditioning technician can easily install this system in your home or office. It will normally require about 5-8 hours to replace an existing, similar type system.
Indoor Air Handler Features
- Fully insulated with 1.0" foil facing - Provides quieter operation
- Rugged steel wall cabinet insulation for added strength
- Features GE's new X-13 (ECM) motor which provides enhanced SEER performance with most Ruud outdoor unit
- Built-in evaporator coil with horizontal and vertical thermoplastic drain pans - Allows multi position installation
- Blower operation designed for soft start and stop - More efficient operation eliminating cold blast of air on heating startup
- Simple and uncomplicated design and application - Requires no special controls or installation procedures
- Durable, attractive cabinet resists corrosion 50% better
- Circuit Board - Combines commonly used connections in one area
- Ease of service - Plug in wire connections and built-in filter rack
- TXV metering device provides precise and efficient refrigerant control
- 5 field selectable air flow settings - Can be adjusted to optimize system air delivery for each individual mode of operation
- Power supply entry at top - Ease of installation
- Rust resistant nickel chromium heating elements - Increased durability and longer life
