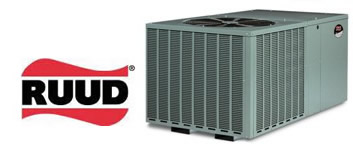

The quality of this air conditioning condenser is apparent the moment you remove the carton. The tough, protective cabinet features electrostatically applied paint that is then baked for long lasting good looks and protection.

Yard debris and severe weather are no match for this solid, durable cabinet, featuring a steel reinforced top for maximum strength.

The UAPC series air conditioning models also feature a special sound-reducing package consisting of a PSC, 4 blade, 8-pole fan motor and discharge line muffler.

The result?

Quiet and smooth operation so you and your neighbors can rest easy. Ruud uses only a heavy gauge copper and aluminum fin coil construction for maximum heat transfer and efficiency. This coil is designed to resist the elements and remain leak free year after year.

Ruud installs protective high and low pressure controls to prevent damage to the compressor from pressure extremes. Why settle for less than the absolute highest measure of protection for your new system?

This Ruud condenser is designed for ground level or rooftop mounting and is pre-charged with R-22 refrigerant.

The Ruud UAPC series efficient air conditioners feature SEER ratings of 14+, making it an energy efficient choice for home comfort. Compared with a 15 year old system, you could save up to 36% on your energy bill.

Here's a savings example for a 3 ton system:

Annual operating costs for a 15 year old, 8 SEER system--$810.00*

Annual operating costs for a Ruud 14+ SEER system---$464.00*

If you live in very warm climate your savings could be even greater. SEER stands for Seasonal Energy Efficiency Ratio.

SEER gives an indication of the energy efficiency of the system. The higher the SEER, the more efficient the unit. And, the more efficient the unit, the lower your energy costs.

When you purchase a system with a high SEER, you'll use less energy to cool your house, resulting in lower electric bills. In many cases, these savings are enough to partially or fully offset the cost of the new equipment within a few years.

*Based on .10 cents average per Kilowatt Hour and 1800 annual operating hours

Materials for all components are factory tested and engineered for long-lasting performance and reliability.

• Durable full metal jacket protects the coil
• Compressor Cycle Protection prevents unnecessary wear and tear
• Powder coat paint provides durability and long lasting protection
• Unit is finished in a 1000-hour salt spray treatment -- Up to 50% more durable
• The Copeland Scroll Compressor is the most durable ever created
• High and low pressure switches provide an unusually high level of protection

• Copper tube with aluminum fin coil construction for improved heat transfer
• Drawn painted base pan for superior corrosion resistance
• Hard start components for reliable startup under varying electric conditions
• Bi-directional filter drier protects the system from contaminants

Ruud created a specially designed drain pan that provides for more complete condensation removal, preventing the build-up of mold and mildew within the system.

And, when you add one of our whole-house air cleaners to your system, you will experience a reduction in dust, pollen and other allergens throughout your entire home resulting in a cleaner, healthier, more comfortable home.

Don't let the affordable price tag fool you- Buying direct eliminates many layers of overhead from your purchase and Ruud is a leader in home heating and cooling systems with over 100 years of experience. In fact, the leading consumer advocacy group awarded the Ruud Brand a top quality rating for durability.

Quality claims are a dime a dozen but Ruud's dependability is documented and reflects a quality commitment rarely matched in the industry today.

Plus, to save costs at installation time, the Ruud air conditioning condensers are pre-charged with R-22 refrigerant for up to 15-20 feet of tubing.

Once in a while, a new technology is developed that gains widespread acceptance through superior function and design; the Copeland Scroll Compressor has gained respect and industry-wide acceptance through time-tested field use and not from laboratory theory.

The Copeland Scroll Compressor has proven itself to be the quietest and most dependable ever created.

Here's why:

The Copeland Scroll technology is based on the concept of compliance.Two scroll members interact to simultaneously achieve high efficiency and durability.

This efficient twisting motion greatly reduces the numbers of parts that can fail while eliminating the inefficient up and down piston motion of ordinary compressors.

This unique and patented approach. achieving both radial and axial compliance - provides important advantages:

• Continuous flank contact, maintained by centrifugal force, minimizes gas leakage and maximizes efficiency.
• Radial compliance allows the scroll members to separate the presence of liquid refrigerant or debris, thereby substantially improving durability and reliability.
• Axial compliance allows the scroll to remain in continuous contact in all normal operating conditions, ensuring minimal leakage without the use of tip seals.
• Both radial and axial compliance allow the scroll members to actually wear in rather than wear out.
