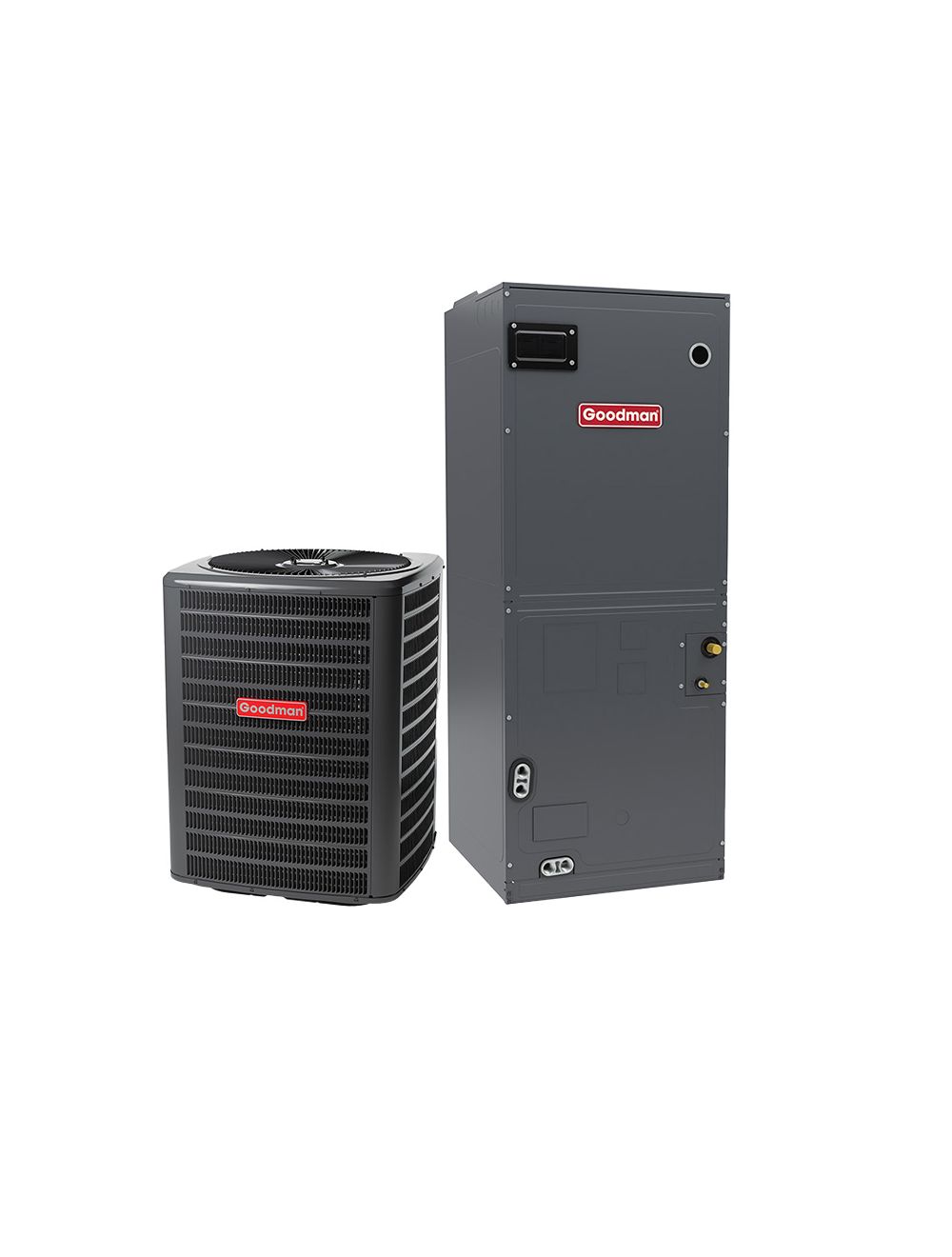

Goodman 4 Ton 15.2 SEER2 R32 Heat Pump Split System ***PREMIUM SEASONAL SPECIALS***
Included
-
Goodman 4 Ton Heat Pump Condenser - GLZS4BA4810
1 × Goodman 4 Ton 15.2 SEER2 R32 Heat Pump Condenser (GLZS4BA4810)
$3,772.00$3,772.00 -
Goodman 4 Ton R32 Air Handler - AMST48CU1300
1 × Goodman 4 Ton R32 Multi-Position ECM-Based Air Handler With Internal TXV (AMST48CU1300)
$1,901.00$1,901.00
Heat pumps lose efficiency below ~25°F. A heat kit adds electric backup for the coldest days. Most homes this size choose 8–10 kW.
Select Optional Accessories / Units
We highly recommend this protection. Covers the technician’s bill if a repair is ever needed — parts are already covered separately.
Extended Labor Warranty-
0% Interest — for orders over $3000
-
No Credit Needed — Offered at checkout
-
7 night Luxury Resort Stay — For orders over $3000
What's Included
What's Included
Goodman 4 Ton 15.2 SEER2 R32 Heat Pump Condenser
Model Number
GLZS4BA4810
Dimensions
35-1/2" W x 35-1/2" D x 36-1/2" H
Documents
Limited Warranty
Parts: 10 years
Goodman 4 Ton R32 Multi-Position ECM-Based Air Handler With Internal TXV
Model Number
AMST48CU1300
Dimensions
21-1/8" W x 21" D x 58" H
Documents
Limited Warranty
Parts: 10 years
Heating Element
Choice of (1) Heat Kit
Heat Options
3kW | 5kW | 6kW | 8kW | 10kW | 15kW
Warranty
Parts: 5 years
AHRI Number
215213861
Outdoor Unit Details
Outdoor Unit Details
GLZS4B Overview
Standard Features
- High-efficiency compressor
- SmartShift® technology to ensure quiet reliable defrost
- Enhanced aluminum fin coil- 5 mm diameter on 1.5T-3.5 Ton
- Enhanced aluminum fin coil with 7mm diameter copper tubes in 4.0- to 5.0-ton
- Single-speed PSC condenser fan motor
- Factory-installed bi-flow liquid-line filter drier
- Factory-installed suction-line accumulator
- Factory-installed compressor crankcase heater
- Factory-installed high-capacity muffler
- High- and low-pressure switches
- Service valves with sweat connections and easy access to gauge ports
- Fully charged for 15’ of tubing length
- Fully enclosed contactor with lug connection
- Ground lug connection
- Capacitors with extended life
- AHRI Certified; ETL Listed
Cabinet Features
- Removable grille-style top design compliant with UL 60335-2-40
- Steel louver coil guard
- Heavy-gauge galvanized-steel cabinet
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Top and side maintenance access
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Indoor Unit Details
Indoor Unit Details
AMST R32 Overview
Features
- Internal factory-installed thermal expansion valves for cooling and heat pump applications
- Direct drive, multi-speed ECM blower motor
- All-aluminum evaporator coil
- Coil mounting track for quick repositioning
- Optimized for use with R-32 refrigerant
- Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
- Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
- AHRI certified; ETL listed
- UL 60335 2-40 Compliant
- Factory installed R32 sensor designed for lifespan of coil
- Rigid SmartFrame™ cabinet
- Horizontal or vertical configuration capabilities
- 21" depth for easier attic access
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Screw-less sides and back helps to reduce condensation when installed in humid locations
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Glue-less cabinet insulation retention
- Tool-less filter access
- Field Installed 3 kW – 25 kW electric heater kits available
Heating Element
Standard Features
- Sequencers for better temperature control
- Multiple branch circuit capability
- Completely assembled and tested
- Control circuitry arranged to readily permit staging
- Factory-installed circuit breakers available on specific models (See Electrical Data)
- Fuse link secondary high-temperature limit control
- Plug-in wiring harness for ease of installation into air handler
- Rust-resistant nickel chromium heat elements
- ETL Listed
Specifications Sheets
Specifications Sheets
Product Specification
Warranty Information
Warranty Information
Warranty
Shipping & Returns
Shipping & Returns
Fast nationwide fulfillment from the USA. Free shipping on qualifying orders over $1,500. See our shipping and returns policy for full details.
