Mitsubishi 48000 BTU 4 Zone / Room Mini Split Heat Pump AC System | Choose Your Indoor Units | SMART Series | R454B

MXZ-SM48NL Overview

The MXZ-SM48NL is an outdoor unit for multi-zone mini split systems. It can connect to up to eight indoor units, letting you set up a heating and cooling system tailored to your home's needs. With many compatible indoor units and energy-saving technology, the MXZ-SM48NL is a great choice for almost any home.

Features

• Compatible with M- and P-Series and CITY MULTI® indoor units (branch box required for connection with M- and P-Series)
• Compressor overcurrent detection
• Compressor thermal protection
• Fan motor overheating/voltage protection
• High pressure protection
• INVERTER-driven compressor: Compressor generates the precise capacity needed to maintain a temperature set point.
• Quiet operation: Outdoor units are as quiet as a typical conversation, and most indoor units are whisper quiet.
• Seacoast protection: Seacoast protection on heat exchanger and base panel (rated for 2,000 hrs. in accordance with ASTM B117 testing)
• Thermal Differential 1°F
• Also known as "Mr. Slim" - Mitsubishi's popular nickname for its ductless mini split line

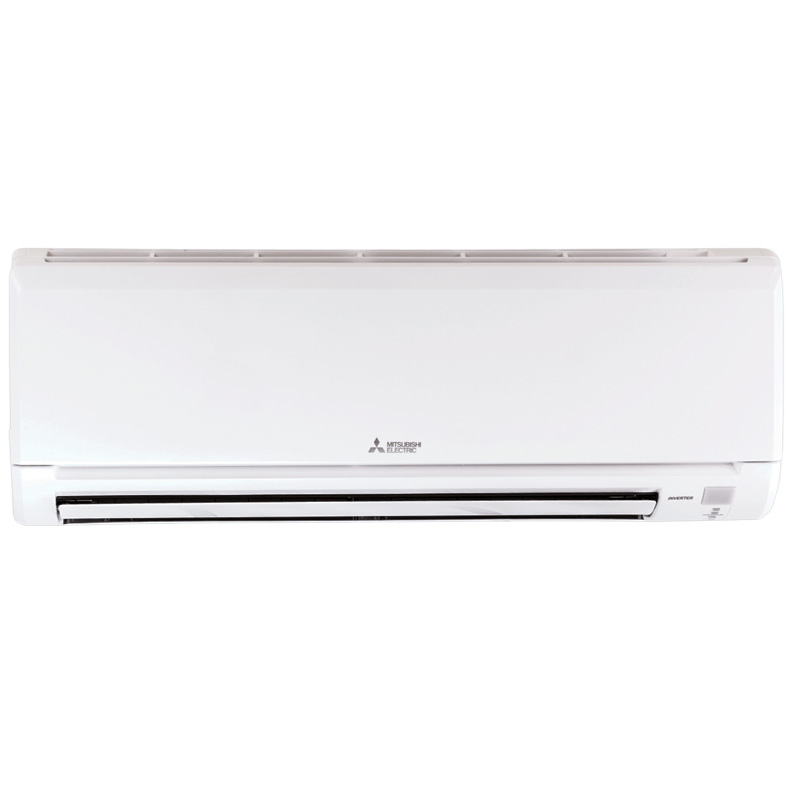

MSZ-GX06NL Overview

The MSZ-GX Premier is a wall-mounted air handler that spreads air evenly throughout the room. It has a special coating inside to keep it clean and efficient. It also has a Powerful Mode to quickly cool or heat the room.

Features

• Dual Barrier Coating: The patented Dual Barrier Coating reduces the collection of contaminants like dust, fibers, smoke, and oil on the inner surface of the heat pump, resulting in optimal airflow and easier maintenance.
• Econo Cool: Econo Cool temporarily and automatically adjusts the airflow based on heat exchanger temperature. The set temperature is increased slightly, which saves energy, while maintaining comfort.
• Filter: Electrostatic Enzyme filter (built-in) that is charged with static electricity and designed to attract and filter charged particles which can include airborne non-living particulates. and Microparticle filter (optional) that removes non-living particulate matter, which can include dust and smoke.
• Multiple control options including: Back-lit screen hand-held Remote Controller (provided with unit), comfort app, third-party interfaces and both wired and wireless controllers
• Multiple fan speed options: Low, Medium, High, Powerful, Auto
• Powerful Mode: Temporarily drops or raises the set point and fan speed in order to quickly bring the room to the desired temperature.
• Quiet operation: Outdoor units are as quiet as a typical conversation, and most indoor units are whisper quiet.
• Slim wall-mounted indoor units provide zone comfort control
• Smart Dry Mode: Improves humidity control with minimal over-cooling of the space
• Smart Set: recalls a preferred preset temperature setting at the touch of a button
• Wi-Fi enabled units pair with the Comfort app for complete control over temperature, fan speeds, modes, schedules, and more.

MSZ-FX06NL Overview

The MSZ-FX06NL is a powerful and energy-saving air handler for homes and small businesses. When used with the MUZ-FX06NLHZ outdoor unit, it keeps you comfortable all year. It has smart technology for better heating, runs quietly, and uses less energy to save on costs.

Features

• 3D i-see Sensor® (Built-in): The advanced sensor scans each room to produce a complete thermal profile that includes heat signatures based upon size, temperature and movement, then adjusts temperature and airflow based on user preference, and saves energy according to room occupancy.
• Dual Barrier Coating: The patented Dual Barrier Coating reduces the collection of contaminants like dust, fibers, smoke, and oil on the inner surface of the heat pump, resulting in optimal airflow and easier maintenance.
• Dual Barrier Fusion: The patented Dual Barrier Fusion reduces the collection of contaminants like dust, fibers, smoke, and oil on the vanes of the indoor unit, keeping it clean all year long. Dual Barrier Fusion’s shielding power is fused directly into the material of the horizontal and vertical vanes during manufacturing to maintain effectiveness and longevity of the components, and to promote vane cleanliness and reduce odors.
• Dual Vane: Dual-Vane feature allows for airflow direction to be set independently using two vanes, which can then deliver airflow across wide areas of a room, levels of a zone, or to two people in different locations at the same time.
• Econo Cool: Econo Cool temporarily and automatically adjusts the airflow based on heat exchanger temperature. The set temperature is increased slightly, which saves energy, while maintaining comfort.
• Multiple control options including: Back-lit screen hand-held Remote Controller (provided with unit), comfort app, third-party interfaces and both wired and wireless controllers
• Multiple fan speed options: Low, Medium, High, Powerful, Auto
• Powerful Mode: Temporarily drops or raises the set point and fan speed in order to quickly bring the room to the desired temperature.
• Quiet operation: Outdoor units are as quiet as a typical conversation, and most indoor units are whisper quiet.
• Slim Design: Slim wall-mounted indoor units provide zone comfort control
• Smart Dry +: The Smart Dry+ mode intelligently provides precise humidity control with minimal over-cooling of the space.
• Triple Action Filtration: Standard Microparticle and Electrostatic Enzyme Filters, along with an optional Carbon-based Deodorizing Filter. It effectively removes non-living particulate matter like dust and smoke, utilizes nanotechnology to absorb and neutralize odors, and employs static electricity to attract and filter charged airborne particles.
• Wi-Fi enabled units pair with the Comfort app for complete control over temperature, fan speeds, modes, schedules, and more.

MLZ-KX06NL Overview

The EZ FIT® Ceiling-recessed Indoor Unit fits neatly between ceiling beams, blending in with your décor. It's a popular choice because it doesn't need ducts. You can adjust the airflow for high or low ceilings, control the direction automatically, and enjoy cleaner air with its multi-stage filtration.

Features

• Adjustable fan speeds and vane directions
• Auto Vane Control: Outlet vanes can be moved left and right, and up and down using the remote controller. This improved air flow control feature solves the problem of drafts
• Built-in condensate lift mechanism (19.6”): Reduces the need for an additional pump to remove condensate water
• Econo Cool: Econo Cool temporarily and automatically adjusts the airflow based on heat exchanger temperature. The set temperature is increased slightly, which saves energy, while maintaining comfort.
• Fits between 16” joists spacing
• Multiple control options including: Hand-held Remote Controller (provided with unit), comfort app, third-party interfaces and both wired and wireless controllers
• Serviceable from the bottom (electrical and flare connections)
• Stylish, square design panel
• Washable antibacterial and deodorizing filter
• Weekly Timer Function: Easily set desired temperatures and operation ON/OFF times to match lifestyle patterns. Reduce wasted energy consumption by using the timer to prevent forgetting to turn off the unit and eliminate temperature setting adjustments.
• Wi-Fi enabled units pair with the Comfort app for complete control over temperature, fan speeds, modes, schedules, and more.

MFZ-KX09NL Overview

The Mitsubishi MFZ-KX09NL is a powerful air handler that sits on the floor. It can heat and cool your home or small business efficiently. You can control the airflow, choose different fan speeds, and even connect it to Wi-Fi for easy adjustments.

Features

• Econo Cool: Temporarily and automatically adjusts the airflow based on heat exchanger temperature. The set temperature is increased slightly, which saves energy, while maintaining comfort.
• Floor front panel access to the filter for ease of cleaning
• Mounts on floor or 5” above floor
• Multi-flow Vane for faster heating
• Multiple control options including: Hand-held Remote Controller (provided with unit), comfort app, third-party interfaces and both wired and wireless controllers
• Multiple fan speed options: Low, Medium, High, Powerful, Auto
• Nano Platinum Filter: This filter has a large capture area and incorporates nanometer-sized platinum-ceramic particles and is designed to reduce the presence of certain nonliving particles, while deodorizing the circulating air.
• Perfect for difficult areas that may be smaller or don’t have usable space on the walls
• Powerful Mode: Temporarily drops or raises the set point and fan speed in order to quickly bring the room to the desired temperature.
• Quiet operation: Outdoor units are as quiet as a typical conversation, and most indoor units are whisper quiet.
• Unit can be recessed mounted into wall
• Up and down swing-mode: An indoor unit with this capability can move air up and down throughout the room like an oscillating fan using the horizontal vanes.
• Wi-Fi enabled units pair with the Comfort app for complete control over temperature, fan speeds, modes, schedules, and more.

SEZ-AD09NL Overview

These SEZ units can be used to heat or cool one or two rooms and are available in single-zone or multi-zone options. They’re designed to work with short duct runs and can be installed out of sight—in the attic, ceiling, under the floor, or behind a wall feature—making them a discreet and flexible choice for your home.

Features

• Built-in condensate lift mechanism
• Concealed horizontal-ducted unit: Concealed horizontal-ducted unit for applications with short duct runs
• Multi-zone: A multi-zone unit provides the temperature management of multiple zones within a building.
• Multiple control options, including the comfort app for remote access, third party interfaces, and both wired and wireless controllers
• Quiet operation: Quiet operation units are as quiet as a typical conversation, and most indoor units are whisper quiet.
• Ultra-thin body: 7-7/8” high

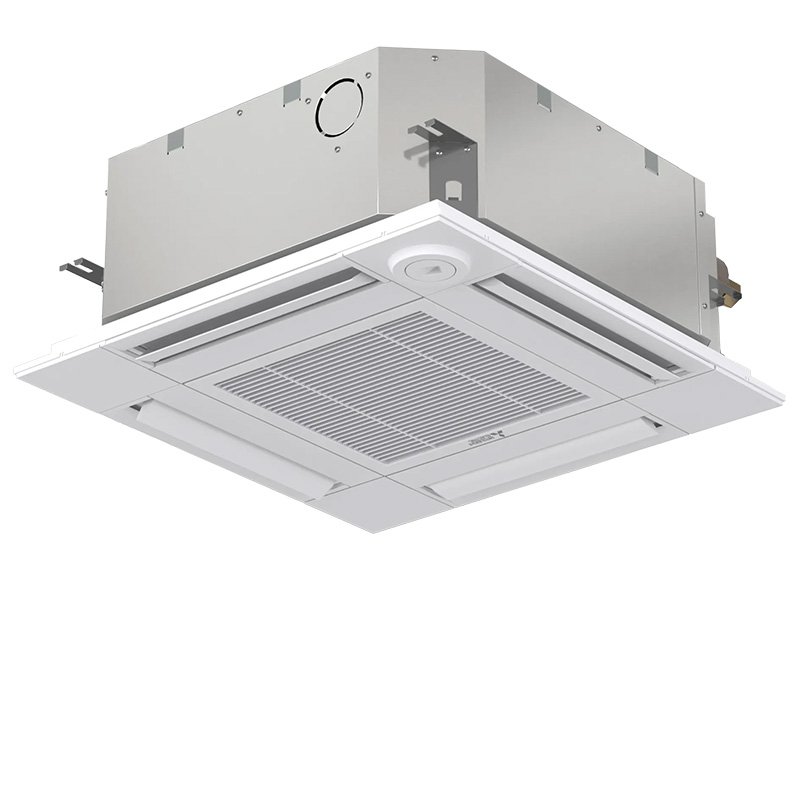

SLZ-AF12NL Overview

This ductless indoor unit is installed flush with the ceiling and fits perfectly into a standard 2'x2' ceiling grid. It has four adjustable vents that can be set in different directions, offering up to 72 airflow patterns to keep you comfortable no matter where you are in the room.

Features

• Built-in drain condensate lift mechanism (lifts to 33”)
• Ceiling-recessed cassette : Ceiling-recessed cassette (24”x24”)
• Fresh air intake: Fresh air intake provided in the main body
• Individual vane control
• Install Konnect Series: Install Konnect Series in a drywalled ceiling (with an access panel for servicing) or in a 2’x2’ drop ceiling
• Light commercial: Units with this icon are suitable for light commercial applications such as small offices, restaurants, and retail.
• Long-life air filter included
• Multi-zone: A multi-zone unit provides the temperature management of multiple zones within a building.
• Multiple control options, including the comfort app for remote access, third party interfaces, and both wired and wireless controllers
• Optional 3D i-see Sensor®: The advanced sensor scans each room to produce a complete thermal profile that includes heat signatures based upon size, temperature and movement, then adjusts temperature and airflow based on user preference, and saves energy according to room occupancy.
• Powerful Mode: Temporarily drops or raises the set point and fan speed in order to quickly bring the room to the desired temperature.
• Up and down swing-mode: An indoor unit with this capability can move air up and down throughout the room like an oscillating fan using the horizontal vanes.
• Wide airflow pattern: Wide airflow pattern for excellent air distribution

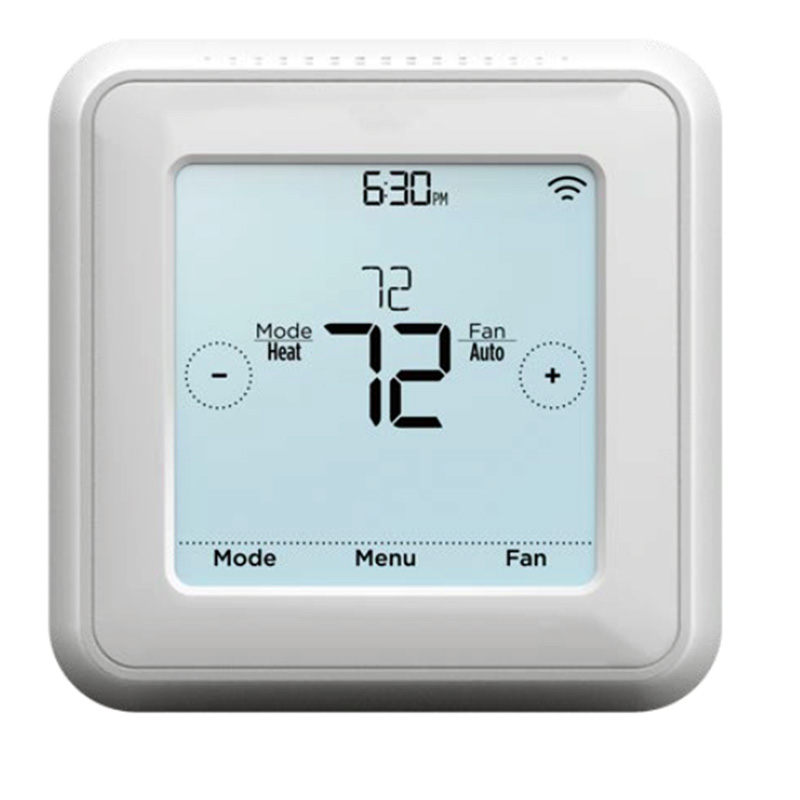

Mitsubishi Wireless Wall Mounted Remote Controller Kit MHK2 Series Overview
