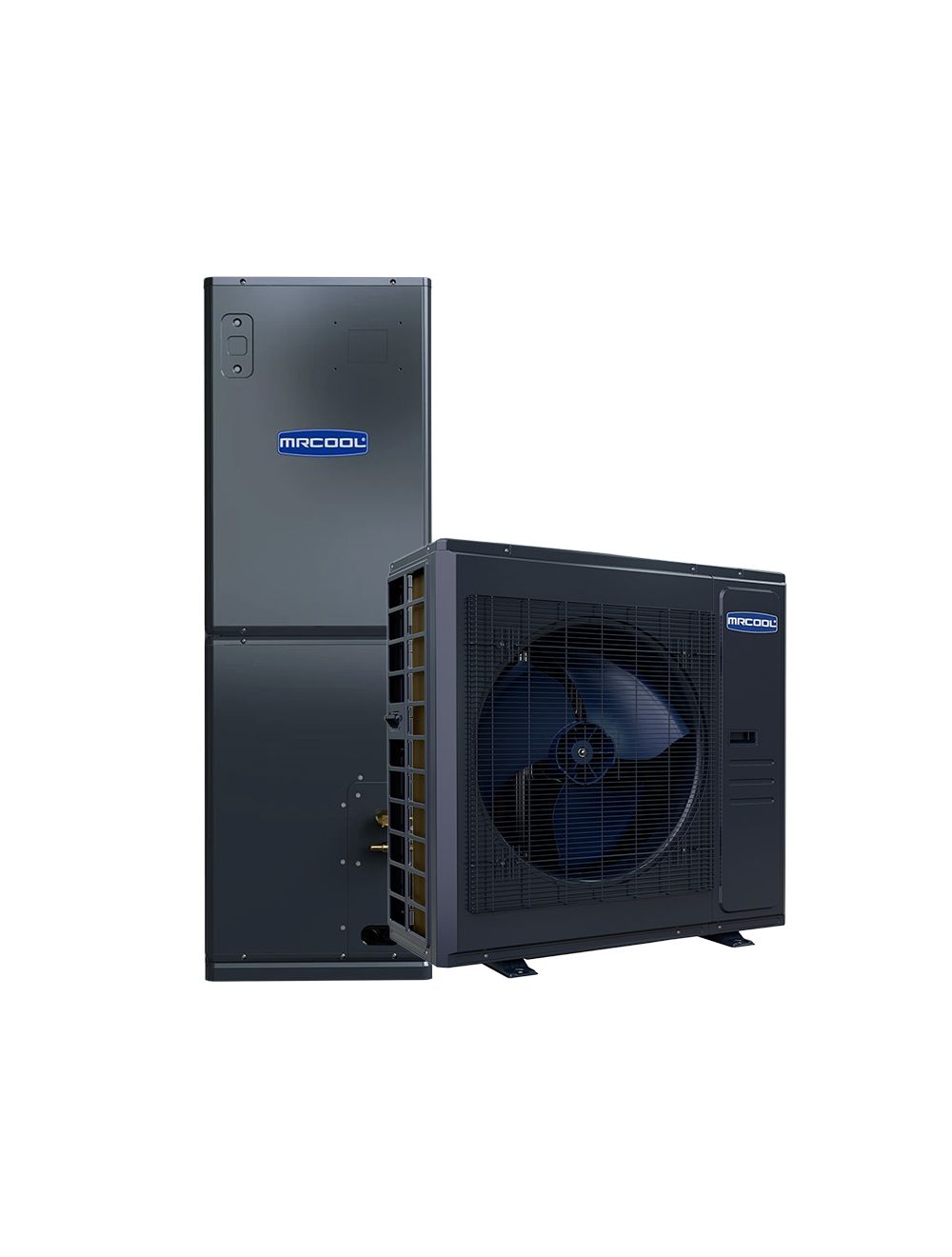

MrCool Universal 4 Ton Central Ducted Heat Pump Split System - 17.5 SEER2, 100% Heat At -13°F, R454B

MrCool Universal Series 48,000 BTU DC Inverter Heat Pump Condenser Overview

Variable-Speed Efficiency. All-Climate Performance. Future-Proof Refrigerant.

The MrCool Universal Series 48,000 BTU (4 Ton) DC Inverter Heat Pump Condenser is engineered for homeowners who want premium, variable-speed central HVAC performance paired with meaningful energy savings. With a 17.5 SEER2 rating and advanced DC inverter technology, this condenser delivers consistent, quiet, efficient heating and cooling year-round — even in extreme climates.

Variable-Speed DC Inverter Performance

Unlike traditional single-stage heat pumps that cycle on and off, the Universal condenser uses a DC inverter-driven rotary compressor that continuously modulates output to match your home's exact demand. The result: more consistent indoor temperatures, quieter operation, lower energy bills, and reduced wear on components — extending the useful life of your HVAC system.

Efficiency That Pays You Back

With a 17.5 SEER2 cooling rating, 12 EER2, and 9.5 HSPF2-4 heating efficiency (Region IV), the Universal heat pump delivers efficiency that materially lowers monthly utility costs — and may qualify for state energy rebates and federal heat pump tax credits under the Inflation Reduction Act. Pair with any Universal Series Multi-Position Air Handler (UAH series) for a complete, high-efficiency split system.

Future-Proof R-454B Refrigerant

Built for the EPA's 2025 refrigerant transition, this condenser uses next-generation R-454B refrigerant — a low-GWP (global warming potential) alternative to legacy R-410A. That means your investment is protected against future refrigerant availability issues and regulatory changes, and you're contributing to a more sustainable refrigerant ecosystem.

NO-VAC Quick Connect Compatible

Works with the optional MrCool NO-VAC Quick Connect line set (sold separately), which arrives pre-charged and sealed — eliminating vacuuming, flaring, and refrigerant handling. This significantly cuts installation time and complexity, making the Universal system an excellent choice for contractors focused on fast, reliable installs.

Quiet Outdoor Operation

Operating at just 65 dB, the Universal condenser runs quietly enough to install close to bedrooms, patios, and outdoor living spaces without disruption — a significant upgrade over older single-stage central AC compressors that can disturb sleep and outdoor entertaining.

Built to Last

Corrosion-resistant construction stands up to rain, snow, UV exposure, and coastal salt air. Premium components and rigorous quality control deliver years of reliable performance in any environment.

Peace of Mind

Backed by an industry-leading warranty:

• 10-Year Parts Warranty
• 2-Year Limited Labor Warranty

Features

• 48,000 BTU cooling & heating capacity (4 Ton)
• 17.5 SEER2 | 12 EER2 cooling efficiency
• 9.5 HSPF2-4 heating efficiency (Region IV)
• 208/230V, single-phase, 60 Hz
• R-454B refrigerant — EPA 2025-compliant, low-GWP
• DC inverter-driven rotary compressor
• Quiet outdoor operation at 65 dB
• NO-VAC Quick Connect line set compatible (sold separately)
• Corrosion-resistant construction for coastal & humid climates
• Electronic expansion valve (EXV) metering for precise refrigerant control
• Max breaker: 40A | Min circuit ampacity: 38A
• Pairs with MrCool Universal Series 4 Ton Multi-Position Air Handler (sold separately)
• AHRI certified | ETL listed

MrCool Universal Series 48,000 BTU Multi-Position Air Handler Overview

Whole-Home Comfort. Flexible Installation. Future-Proof R-454B Refrigerant.

Upgrade your central HVAC with the MrCool Universal Series 48,000 BTU (4 Ton) Multi-Position Air Handler — a versatile, high-efficiency indoor unit engineered to pair with any R-454B-compatible condenser for whole-home heating and cooling. Whether you're replacing an aging system or installing new HVAC equipment, the Universal air handler delivers the flexibility, performance, and long-term durability homeowners expect from a modern central HVAC system.

Multi-Position Installation Flexibility

Supports upflow, downflow, and horizontal installations — fitting easily into attics, closets, crawlspaces, basements, or mechanical rooms. This adaptability gives your HVAC installer more placement options and makes the Universal air handler an excellent choice for both new construction and retrofit projects, including homes with unusual layouts or tight mechanical spaces.

Future-Proof R-454B Refrigerant

Built for the next generation of HVAC, this air handler is engineered for R-454B refrigerant — a low-GWP (global warming potential) option that meets the EPA's 2025 refrigerant transition requirements. Your investment is protected against future refrigerant availability issues and regulatory changes affecting older R-410A systems.

NO-VAC Quick Connect Compatible

Compatible with the optional MrCool NO-VAC Quick Connect line set (sold separately), which arrives pre-charged and sealed — eliminating the need for vacuuming, flaring, or professional refrigerant handling. This dramatically simplifies installation and reduces labor costs, making it an excellent choice for contractors focused on installation efficiency.

High-Efficiency M-Shaped Evaporator Coil

The advanced M-shaped evaporator coil maximizes surface area for superior heat exchange and airflow — improving system efficiency while keeping the unit lightweight. Constructed from 100% aluminum, the coil is corrosion-resistant and built to deliver years of reliable service with minimal maintenance.

Optional Electric Heat Kits

Supports Universal Series Electric Heat Kits (8 kW / 10 kW / 15 kW / 20 kW) for enhanced cold-climate performance or emergency backup heat. Compatible heat kit SKUs for this air handler: UHK08, UHK10, UHK15, UHK20.

Whisper-Quiet Operation

Operating from 33.5 dB at low fan speed — quieter than a standard dishwasher or household conversation — the Universal air handler delivers powerful airflow without disrupting your home. Four variable fan speeds let your installer dial in the right balance of airflow and noise for each zone of your home.

Peace of Mind

Backed by an industry-leading warranty:

• 10-Year Parts Warranty
• 2-Year Limited Labor Warranty

Features

• 48,000 BTU capacity (4 Ton) — pairs with matching Universal Series heat pump condenser
• Multi-position design — upflow, downflow, and horizontal installations
• 115/208/230V, single-phase, 60 Hz
• R-454B refrigerant — EPA 2025-compliant, low-GWP
• NO-VAC Quick Connect line set compatible (sold separately)
• M-shaped evaporator coil — 100% aluminum, corrosion-resistant
• Airflow: 1,088.9 – 1,601 CFM (4 variable fan speeds)
• Whisper-quiet operation (33.5 – 53 dB)
• Replaceable filter: 20 x 20 x 1
• Electronic expansion valve (EXV) metering for precise refrigerant control
• Optional electric heat kits: 8 kW / 10 kW / 15 kW / 20 kW
• Compact slim-profile cabinet fits tight installation spaces
• AHRI certified | ETL listed

MRCOOL Electric Heat Kit with Circuit Breaker for Universal Central Ducted Air Handlers

The MRCOOL electric heat kit is designed to provide supplemental heating for MRCOOL Universal central ducted air handlers. It integrates directly into compatible systems and includes a built-in circuit breaker for safe and reliable operation during colder conditions.

Key Features:

• Electric heat kit designed for supplemental and backup heating
• Available in multiple kW capacities to match system requirements
• Includes integrated circuit breaker for added safety and protection
• Designed for seamless installation with MRCOOL Universal air handlers
• Provides consistent heating performance in colder climates

MRCOOL NV Series No-Vac Line Sets – R-454B Pre-Charged Overview

Quick, Clean, and DIY-Friendly HVAC Connections for MRCOOL R454B Systems

Simplify your HVAC installation with the MRCOOL NV Series No-Vac Line Sets, engineered for fast, reliable, and refrigerant-safe connections between your indoor and outdoor units. These pre-charged line sets are filled with R454B refrigerant and feature Quick Connect® fittings, making them ideal for homeowners and professionals alike.

Key Features

• Pre-Charged with R454B Refrigerant: Factory-sealed and ready to install—no vacuuming or charging required.
• Quick Connect® Technology: Leak-proof, tool-free connections using standard wrenches.
• Durable Copper Lines: Built to last with corrosion-resistant copper tubing.
• Multiple Length Options: Available in 15 ft, 25 ft, 35 ft, and 50 ft to fit a variety of home layouts.
• System Compatibility: Designed for MRCOOL 2nd Gen VersaPro™ and Hyper Heat™ systems.

Benefits for Homeowners

• DIY-Ready: No HVAC license or special tools needed—perfect for confident homeowners.
• Time-Saving Installation: Skip the vacuum pump and brazing—just connect and go.
• Safe & Clean: Factory-sealed to prevent contamination and ensure refrigerant integrity.
• Flexible Sizing: Choose the right length for your setup or extend with compatible couplers.
• Peace of Mind: Leak-tested and backed by MRCOOL’s quality assurance.

Why Choose MRCOOL R-454B No-Vac Line Sets?

These line sets are part of MRCOOL’s next-generation HVAC solutions, offering a greener, safer, and easier way to install your heating and cooling system. With R454B refrigerant, you get improved environmental performance without sacrificing efficiency or reliability.
