- 2.5 ton - best for spaces between 1200 -1500 sq ft depending on your home's insulation and your climate
- SEER2 rating helps consumers compare energy efficiency when choosing a new air conditioner. Higher SEER2 ratings mean significant utility savings. The federal minimum is 14 SEER2 with ratings into the 20 SEER2 range. A 20 SEER2 uses half the energy of a 10 seer much like MPG ratings for vehicles.
- Heat pumps are all electric and good for mild and cold climates.
- If you have an indoor furnace, or air handler, along with an outdoor AC unit, this system will serve as a replacement for both.

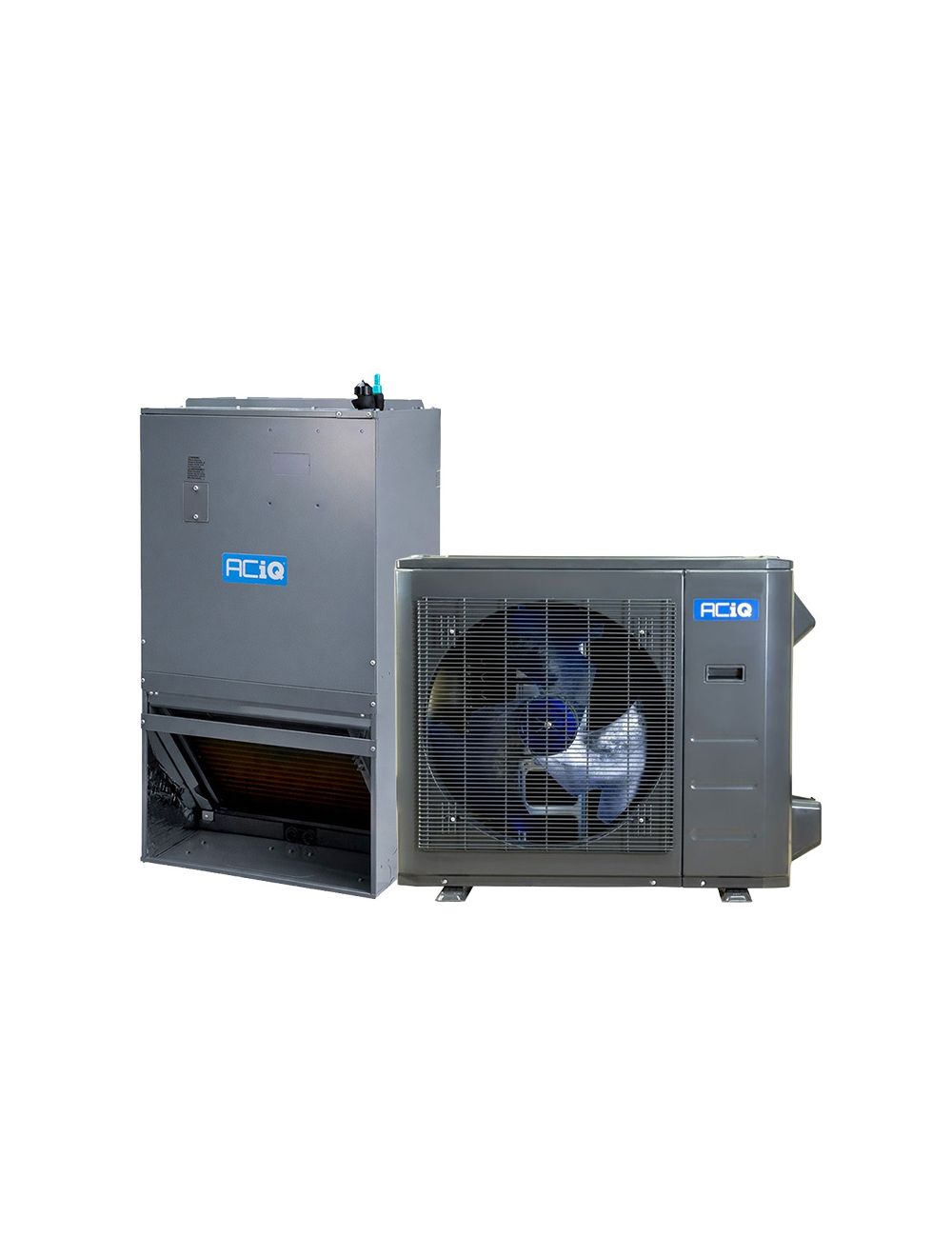

ACiQ 2.5 Ton 18.6 SEER2 Heat Pump Split System with Wall-Mount Ducted Air Handler, R454B
- Condenser: ACIQ-30-EHPD
- Air Handler: ACIQ-30W-WMB
AC Size Calculator | Get BTU’s and Tonnage – Free and Easy!
Welcome! START HERE:
Use the sizing calculator below to calculate your required system size.
Follow these easy steps:
- 2.5 ton - best for spaces between 1200 -1500 sq ft depending on your home's insulation and your climate
- SEER2 rating helps consumers compare energy efficiency when choosing a new air conditioner. Higher SEER2 ratings mean significant utility savings. The federal minimum is 14 SEER2 with ratings into the 20 SEER2 range. A 20 SEER2 uses half the energy of a 10 seer much like MPG ratings for vehicles.
- Heat pumps are all electric and good for mild and cold climates.
- If you have an indoor furnace, or air handler, along with an outdoor AC unit, this system will serve as a replacement for both.
ACiQ 2.5 Ton Heat Pump AC Condenser | 17 SEER2 High Efficiency Inverter R454B
Model Number
ACIQ-30-EHPD
Dimensions
37.24" W x 16.14" D x 31.89" H
Documents
Limited Warranty
Parts: 7 years | Compressor: 12 years
ACiQ 2.5 Ton Wall Mount Ducted Air Handler, R454B
Model Number
ACIQ-24-EHPD
Dimensions
22.01" W x 19.02" D 40.04" H
Documents
Warranty
Parts: 7-year with online registration
AHRI Number
216980783
Adaptable Comfort Through Your Ductwork
A 2.5-ton inverter heat pump with output that adjusts to your home's needs.
The ACiQ ACIQ-30-EHPD 2.5-ton outdoor heat pump works with a compatible indoor air handler to deliver heating and cooling through your home's ductwork. Its inverter-driven compressor responds to changing demand by varying output, helping the matched system maintain comfort throughout the day.
Key Features
- 2.5-ton nominal capacity for a properly sized, matched system.
- Inverter-driven compressor adjusts output to match changing demand.
- Provides both heat-pump heating and cooling.
- Designed for use with a compatible indoor unit and ductwork.
- Modulating operation helps reduce repeated full-output starts and stops.
Comfort That Responds
The compressor can increase output when heating or cooling demand rises and reduce output as conditions settle. This flexibility helps the system maintain a more consistent indoor temperature.
Year-Round Operation
The matched system removes heat from your home in cooling mode and transfers heat indoors from outdoor air in heating mode. Available heating capacity changes with outdoor temperature; supplemental heat may be needed for your climate and application.
Built Around a Compatible Match
This outdoor unit requires a compatible indoor unit. Your installer should confirm the equipment combination, heating and cooling loads, ductwork, controls, and electrical requirements. Capacity and efficiency ratings depend on the complete matched system.
Flexible Ducted Comfort in a Space-Conscious Design
A 2.5-ton wall-mount air handler with adaptable return-air connections and multiple control choices.
The ACiQ ACIQ-30W-WMB 2.5-ton wall-mount ducted air handler delivers conditioned air through your home's ductwork when paired with a compatible outdoor unit. Its vertical wall- or stud-mount design offers a space-conscious option for homes, apartments, and multi-tenant properties, while its insulated galvanized-steel cabinet houses an aluminum coil.
Key Features
- 2.5-ton nominal size for a properly matched R454B heating and cooling system.
- Front return-air connection as standard, with a bottom-return option to suit the installation.
- Constant-airflow capability with external static pressure up to 0.80 in. w.g.
- Airflow up to 988.8 CFM at the listed Turbo setting.
- Multiple control options, including compatible wired controllers and third-party 24V thermostats.
- Supports an optional compatible auxiliary electric heat kit up to 10 kW.
Installation Flexibility
Front or bottom return-air arrangements give your installer options when connecting the unit to your ductwork. The cabinet measures 22.01 × 19.02 × 40.04 inches (W × D × H), helping you plan the equipment location while allowing for the required installation and service clearances.
Airflow for Everyday Comfort
The constant-airflow design supports air delivery through the connected ducts at external static pressures up to 0.80 in. w.g. Your installer can select the appropriate airflow setting for the matched system and duct layout.
Choose Your Control Setup
Supported options include the 120N(X6) two-way communicating wired controller, the 120N(X6W) wired controller with built-in Wi-Fi, a wireless remote controller, or a compatible third-party 24V thermostat. Available functions depend on the selected control and system configuration; Wi-Fi requires the appropriate controller.
Optional Auxiliary Heat
A compatible electric heat kit up to 10 kW can provide supplemental heating when the application calls for it. Heat-kit selection and electrical requirements must be confirmed for the installation.
Matched-System Performance
This indoor unit can be paired with the ACiQ ACIQ-30-EHPD outdoor heat pump as specified in the manufacturer’s submittal. Heating, cooling, and efficiency ratings apply to the complete matched system. This air handler requires a compatible outdoor unit to provide heat-pump heating and cooling.
Who installs the AC unit after I purchase it?
ACDirect does not yet provide installation services directly. However, most of our customers successfully arrange installation through local licensed HVAC contractors. These systems are designed for professional installation and typically include the components your installer will need.
Here’s how it works:
- Hire a licensed HVAC technician in your area
- Use platforms like Angi, Thumbtack, or a local HVAC directory to find reliable professionals
- Confirm your installer is experienced with the system type you’re purchasing
Note:
Please be aware if you choose to install HVAC equipment yourself and don’t possess proper HVAC licensing, you will void the manufacturer’s factory warranty. If you are capable of a factory-compliant installation yourself, you will need a licensed HVAC contractor to sign off on your work, fully confirming factory-compliant workmanship.
