- 2.5 ton - best for spaces between 1200 -1500 sq ft depending on your home's insulation and your climate
- SEER2 rating helps consumers compare energy efficiency when choosing a new air conditioner. Higher SEER2 ratings mean significant utility savings. The federal minimum is 14 SEER2 with ratings into the 20 SEER2 range. A 20 SEER2 uses half the energy of a 10 seer much like MPG ratings for vehicles.
- If you have an indoor furnace, or air handler, along with an outdoor AC unit, this system will serve as a replacement for both.
- Best for cold climates and if you already have a gas furnace or a gas fuel supply already available.
- You'll need about 25-30 Btu's per sq. foot for warmer winter climates and about 35-50 Btu's per sq. foot for colder winter climates - highly dependent on construction type and insulation values.

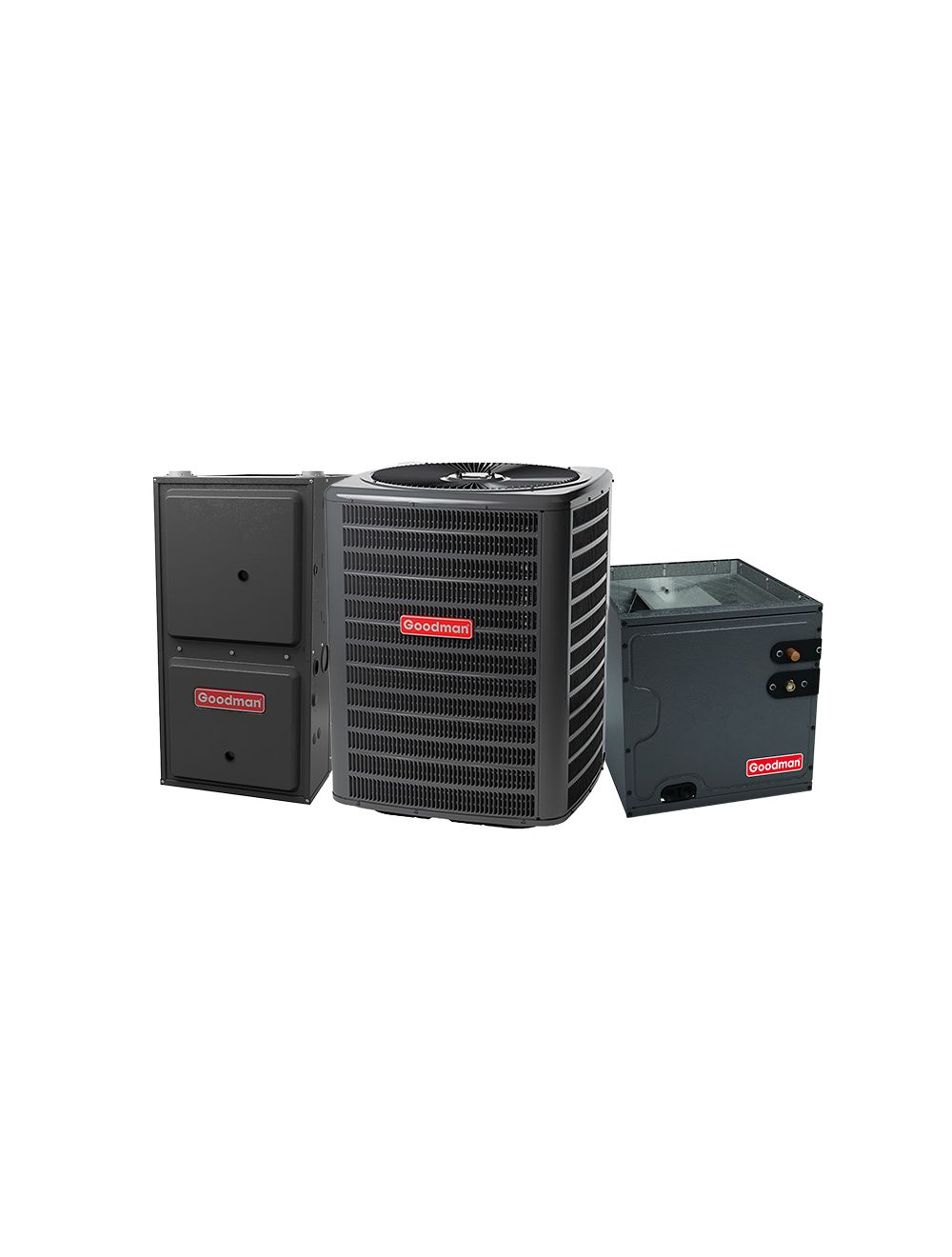

Goodman 2.5 Ton 15.2 SEER2 AC & Gas Furnace System - 100,000 BTU 96% AFUE Two-Stage Variable-Speed Downflow Gas Furnace, R32
- Condenser: GLXS5BA3010
- Gas Furnace: GDVT961005CN
- Evaporator Coil: CAPTA3026C3
Furnace BTU Sizing Tonnage Calculator
Heating Square Footage Range by Climate Zone
| Region 1 | Region 2 | Region 3 | Region 4 | Region 5 |
| 30 - 35 BTU's per square foot | 35 - 40 BTU's per square foot | 40 - 45 BTU's per square foot | 45 - 50 BTU's per square foot | 50 - 60 BTU's per square foot |
- 2.5 ton - best for spaces between 1200 -1500 sq ft depending on your home's insulation and your climate
- SEER2 rating helps consumers compare energy efficiency when choosing a new air conditioner. Higher SEER2 ratings mean significant utility savings. The federal minimum is 14 SEER2 with ratings into the 20 SEER2 range. A 20 SEER2 uses half the energy of a 10 seer much like MPG ratings for vehicles.
- If you have an indoor furnace, or air handler, along with an outdoor AC unit, this system will serve as a replacement for both.
- Best for cold climates and if you already have a gas furnace or a gas fuel supply already available.
- You'll need about 25-30 Btu's per sq. foot for warmer winter climates and about 35-50 Btu's per sq. foot for colder winter climates - highly dependent on construction type and insulation values.
Goodman 2.5 Ton Up To 16.5 SEER2 R32 High-Efficiency Cooling Only Condenser
Model Number
GLXS5BA3010
Dimensions
35-1/2" W x 35-1/2" D x 39-1/2" H
Documents
Warranty
Parts: 10 years
Goodman 96% AFUE 100000 BTU Variable Speed ECM 2 Stage Gas Furnace Downflow | R32
Model Number
GDVT961005CN
Dimensions
21" W x 29" D x 34-1/2" H
Documents
Limited Warranty
Parts: 10 years | Heat Exchanger: Limited Lifetime
Goodman 2.5 Ton R32 Evaporator Coil With Internal TXV Upflow / Downflow
Model Number
CAPTA3026C3
Dimensions
21" W x 21" D x 26" H
Documents
Warranty
Parts: 10 years
AHRI Number
216614310
Goodman 2.5 Ton Up To 16.5 SEER2 R-32 Air Conditioner Condenser
Model: GLXS5BA3010
High-efficiency cooling performance designed for dependable home comfort and energy savings.
The Goodman GLXS5BA3010 air conditioner condenser delivers 2.5 tons (30,000 BTU) of efficient cooling capacity for medium-sized residential applications. With ratings of up to 16.5 SEER2, this high-efficiency unit helps homeowners enjoy consistent comfort while reducing overall energy consumption.
Designed for long-term reliability, the GLXS5BA3010 combines durable Goodman construction with environmentally friendly R-32 refrigerant technology. Its efficient performance, dependable operation, and robust outdoor cabinet make it an excellent choice for both replacement and new installation projects.
Features & Benefits
- 2.5 ton cooling capacity (30,000 BTU)
- Up to 16.5 SEER2 high-efficiency performance
- Designed for cooling-only air conditioning applications
- Uses environmentally friendly R-32 refrigerant
- Energy-efficient operation helps reduce utility costs
- Factory-installed filter drier for enhanced system protection
- Heavy-gauge galvanized steel cabinet construction
- Weather-resistant powder-coated finish
- Quiet and dependable cooling performance
- Copper tube and aluminum fin coil design for efficient heat transfer
- Compatible with matched Goodman indoor equipment
- AHRI Certified and ETL Listed
- Ideal for medium-sized residential replacement and new construction applications
GDVT96 Overview
Standard Features
- Integrated communicating ComfortBridge™ Technology
- Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application
- Heavy-duty aluminized-steel tubular heat exchanger
- Stainless-steel secondary heat exchanger
- Two-stage gas valve provides quiet, economical heating
- Durable Silicon Nitride igniter
- Quiet two-speed induced draft blower
- Compatible with any single-stage thermostat
- Self-diagnostic control board with constant memory fault code history output to a triple 7-segment display
- Color-coded low-voltage terminals with provisions for electronic air cleaner
- Efficient and quiet variable-speed airflow system gently ramps up or down according to heating or cooling demand
- Multiple continuous fan speed options offer quiet air circulation
- Auto-Comfort and enhanced dehumidification modes available
- All models comply with California 40 ng/J Low NOx emissions standard
- Can no longer be installed in California’s South Coast Air Quality Management District (SCAQMD) on or after October 1, 2019.
Cabinet Features
- Designed for multi-position installation — upflow, horizontal left or right
- Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
- Easy to install top venting with optional side venting
- Convenient left or right connection for gas and electrical service
- Cabinet air leakage (QLeak) ≤ 2%
- Heavy-gauge steel cabinet with durable baked-enamel finish
- Fully insulated heat exchanger and blower section
- Airtight solid bottom or side-return with easy-cut tabs for effortless removal in bottom air-inlet applications
Goodman CAPTA3026C3 Cased Coil – 2.5 Ton, 21" Cabinet
Reliable performance with wider cabinet design
The Goodman CAPTA3026C3 is a 2.5-ton cased coil designed with a 21-inch cabinet width, making it suitable for larger system configurations. Its durable aluminum coil ensures long service life.
With a factory-installed TXV and thermoplastic drain pan, it delivers reliable efficiency and easy maintenance.
Features & Benefits
- 2.5 Ton nominal capacity
- 21" cabinet width for strong airflow
- All-aluminum coil for improved reliability
- Factory-installed TXV
- Upflow/Downflow flexibility
Who installs the AC unit after I purchase it?
ACDirect does not yet provide installation services directly. However, most of our customers successfully arrange installation through local licensed HVAC contractors. These systems are designed for professional installation and typically include the components your installer will need.
Here’s how it works:
- Hire a licensed HVAC technician in your area
- Use platforms like Angi, Thumbtack, or a local HVAC directory to find reliable professionals
- Confirm your installer is experienced with the system type you’re purchasing
Note:
Please be aware if you choose to install HVAC equipment yourself and don’t possess proper HVAC licensing, you will void the manufacturer’s factory warranty. If you are capable of a factory-compliant installation yourself, you will need a licensed HVAC contractor to sign off on your work, fully confirming factory-compliant workmanship.
