- 4 ton - best for spaces between 2000-2400 sq ft depending on your home's insulation and your climate
- SEER2 rating helps consumers compare energy efficiency when choosing a new air conditioner. Higher SEER2 ratings mean significant utility savings. The federal minimum is 14 SEER2 with ratings into the 20 SEER2 range. A 20 SEER2 uses half the energy of a 10 seer much like MPG ratings for vehicles.
- Best for cold climates and if you already have a gas furnace or a gas fuel supply already available.
- You'll need about 25-30 Btu's per sq. foot for warmer winter climates and about 35-50 Btu's per sq. foot for colder winter climates - highly dependent on construction type and insulation values.
- If you have a mobile home be sure the equipment is designed specifically for mobile homes or it will NOT work properly

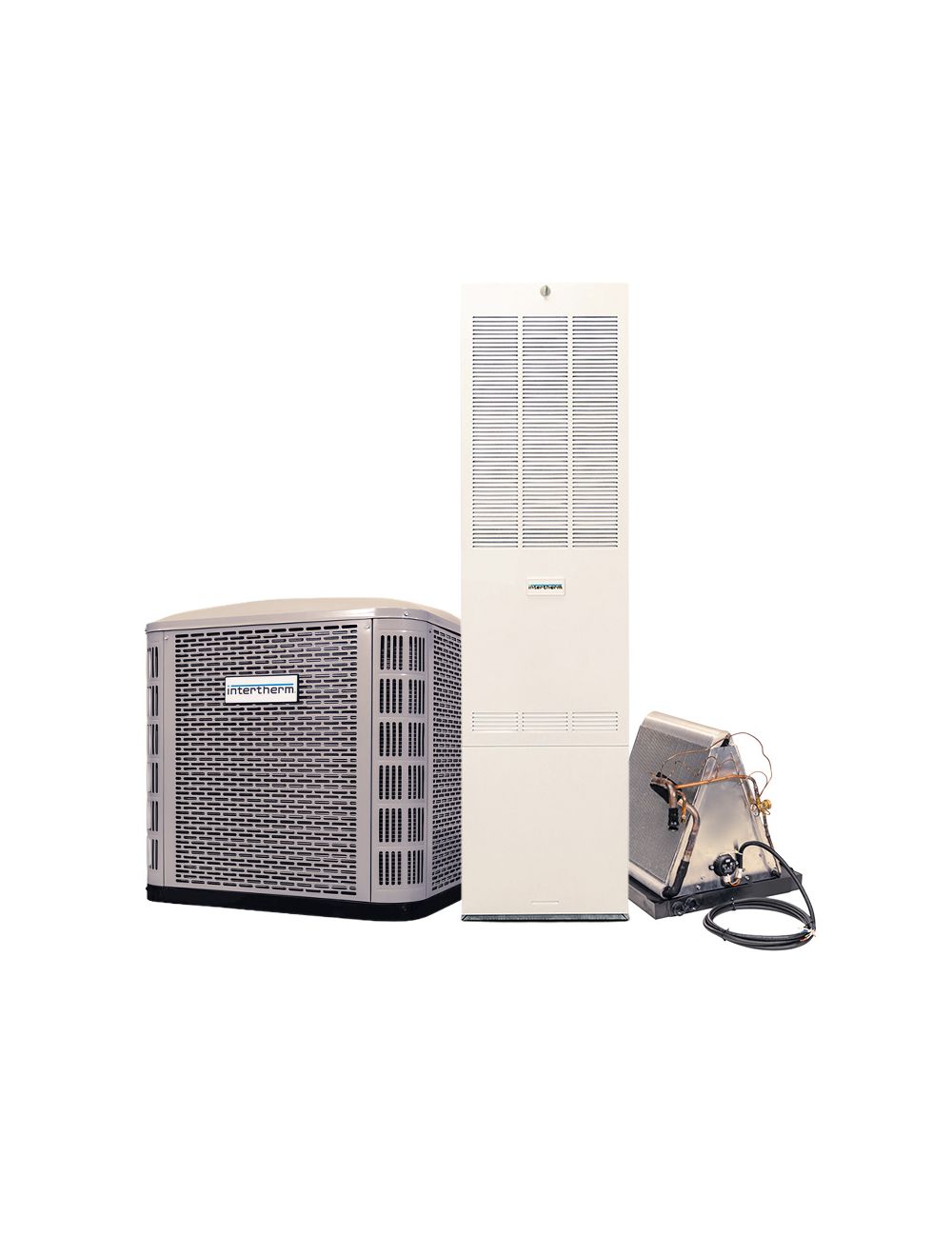

Intertherm 4 Ton AC And 80% AFUE Downflow Gas Furnace System with Coil Cabinet for Mobile Homes - Select Your Furnace, R454B
- Condenser: HSA4ME5M1SN48K
- Gas Furnace Options: 70000 - 90000 BTU
- Select A Roof Jack
- Uncased Coil: C85DAMX48U-B
- 4 ton - best for spaces between 2000-2400 sq ft depending on your home's insulation and your climate
- SEER2 rating helps consumers compare energy efficiency when choosing a new air conditioner. Higher SEER2 ratings mean significant utility savings. The federal minimum is 14 SEER2 with ratings into the 20 SEER2 range. A 20 SEER2 uses half the energy of a 10 seer much like MPG ratings for vehicles.
- Best for cold climates and if you already have a gas furnace or a gas fuel supply already available.
- You'll need about 25-30 Btu's per sq. foot for warmer winter climates and about 35-50 Btu's per sq. foot for colder winter climates - highly dependent on construction type and insulation values.
- If you have a mobile home be sure the equipment is designed specifically for mobile homes or it will NOT work properly
As low as $6,534.46 was $6,702.00
Intertherm 4 Ton 14.3 SEER2 Air Conditioner Condenser for Mobile Homes, R454B
Model Number
HSA4ME5M1SN48K
Dimensions
31.75" W x 31.75" D x 45.25" H
Documents
Warranty
Standard: Parts: 1 year | 5 years
Registered: Parts: 5 years | 10 years
Intertherm 70,000 BTU 80% AFUE Gas Furnace for Mobile Homes - Single-Stage, Front Return, Downflow, R410 & R454B Compatible, With Coil Cabinet
Model Number
MG1E-B070F1ABM1
Dimensions
20" W x 23.8" D x 76" H
Documents
MG1E-B070F1ABM1 Specifications
Warranty
Standard: Parts: 1 year | Heat Exchanger: 10 year
Registered: Parts 5 year | Heat Exchanger: 10 year
Intertherm 77,000 BTU 80% AFUE Gas Furnace for Mobile Homes - Single-Stage, Front Return, Downflow, R410 & R454B Compatible, With Coil Cabinet
Model Number
MG1E-B077F1ABM1
Dimensions
20" W x 23.8" D x 76" H
Documents
MG1E-B077F1ABM1 Specifications
Warranty
Standard: Parts: 1 year | Heat Exchanger: 10 year
Registered: Parts 5 year | Heat Exchanger: 10 year
Intertherm 90,000 BTU 80% AFUE Gas Furnace for Mobile Homes - Single-Stage, Front Return, Downflow, R410 & R454B Compatible, With Coil Cabinet
Model Number
MG1E-B090F1ABM1
Dimensions
20" W x 23.8" D x 76" H
Documents
MG1E-B090F1ABM1 Specifications
Warranty
Standard: Parts: 1 year | Heat Exchanger: 10 year
Registered: Parts 5 year | Heat Exchanger: 10 year
Roof Jack Options
Intertherm 4 Ton Uncased A-Vertical Evaporator Coil With TXV for Mobile Home - 19-3/4-inch Cabinet Width, R454B
Model Number
C85DAMX48U-B
Dimensions
18-1/8" W x 19-1/6" D x 25" H
Documents
Warranty
Parts: 3 year
Durable High-Capacity Cooling for Factory-Built Home Comfort
Efficient 4-ton cooling provides dependable comfort when outdoor temperatures climb.
The Intertherm HSA4ME5M1SN48K is a 4-ton, 48,000 BTU split-system air conditioner created for compatible manufactured and modular home HVAC systems. Rated at 14.3 SEER2, it delivers the higher cooling capacity required by properly sized applications while helping homeowners avoid the excessive energy use associated with outdated equipment.
Homeowners who recognize the former Revolv product line will now find that manufactured-home HVAC tradition under the Intertherm brand. The HSA4ME series combines application-specific engineering with a powder-coated galvanized-steel cabinet that protects the condenser against corrosion, fading, scratches, and chipping.
- 4-ton cooling capacity: Delivers approximately 48,000 BTUs of cooling for homes requiring higher-capacity equipment.
- 14.3 SEER2 operation: Provides efficient cooling performance for greater seasonal comfort.
- R454B refrigerant: Uses a lower-global-warming-potential refrigerant developed for modern HVAC equipment.
- Factory-built home engineering: Designed for compatible manufactured and modular home installations.
- Rugged cabinet construction: Powder-coated galvanized steel helps preserve the unit against harsh outdoor exposure.
- Approved equipment matching: Pairs with compatible Intertherm coils and furnaces to form a complete system.
For a manufactured or modular home that requires 4-ton cooling capacity, the HSA4ME5M1SN48K offers a durable and efficient foundation for a complete Intertherm comfort system. Professional load calculation and component matching should be completed before ordering.
Reliable Gas Heating Designed Around the Manufactured-Home Footprint
Single-stage downflow comfort with configuration options for compatible central cooling systems.
The Intertherm MG1E Series Gas Furnace provides dependable single-stage heating for compatible manufactured and mobile homes. Its downflow, front-return design fits the specialized airflow arrangement commonly found in factory-built housing, where heated air is delivered into ductwork below the furnace.
MG1E models offer up to 80% AFUE and nominal input capacities from 56,000 to 90,000 BTU. Available configurations include models with or without an integrated coil cabinet, allowing the furnace to support qualifying replacement installations and compatible central air-conditioning systems.
- Up to 80% AFUE: Provides established gas-furnace performance for factory-built housing.
- Single-Stage Heating: Delivers a consistent level of heat when the thermostat calls.
- Downflow/Front-Return Design: Matches common manufactured-home duct and return-air layouts.
- Multiple Heating Capacities: Available in nominal input capacities from 56,000 to 90,000 BTU.
- Coil-Cabinet Options: Models are available with or without an integrated cabinet for compatible cooling coils.
- Natural Gas or Propane Capability: Conversion must follow the manufacturer’s instructions using approved components.
- Matched Cooling Options: Designed to work with approved Intertherm coils and outdoor equipment.
The Intertherm MG1E Series was formerly sold under the Revolv brand. Before purchasing, confirm the required heating capacity, fuel type, return-air arrangement, coil-cabinet configuration and approved cooling-system match.
Complete the Furnace Venting Path Through the Home’s Roof
Adjustable roof-jack options help provide the combustion-air and exhaust path required by compatible furnaces.
Intertherm Roof Jack Kits are designed for compatible MG1E and M5SB manufactured-home furnaces that require a roof-mounted venting assembly. The roof jack extends from the furnace through the ceiling and roof, allowing the system to draw combustion air and discharge flue gases outdoors.
Available in multiple adjustment ranges and configurations for flat or sloped roofs, these roof jacks allow a qualified installer to select the model that matches the home’s roof pitch and vertical distance. Their aluminum construction provides corrosion resistance for long-term outdoor exposure.
- Furnace-Specific Application: Designed for compatible Intertherm MG1E and M5SB furnaces.
- Multiple Length Ranges: Adjustable options accommodate different ceiling and roof dimensions.
- Flat and Sloped Roof Options: Models are available for several roof-pitch requirements.
- Combustion-Air and Exhaust Path: Supports the furnace’s required outdoor venting process.
- Aluminum Construction: Provides corrosion resistance for exterior installation.
- Matched Installation: Designed to connect with the applicable furnace and roof configuration.
These Intertherm roof-jack products were formerly marketed under the Revolv brand. Select the exact model according to the furnace, roof pitch and required adjustment range; the product image may be representative of the roof-jack family rather than the exact dimensions of every model.
High-Capacity Indoor Cooling Designed for Factory-Built Homes
Efficient 4-ton heat transfer supports dependable cooling in properly matched air-conditioning systems.
The Intertherm C85DAMX48U-B is a 4-ton, 48,000 BTU uncased indoor evaporator coil developed for compatible manufactured and modular home air-conditioning systems. This model is intended for cooling-only applications and works with an approved outdoor air conditioner and compatible indoor furnace.
For homeowners familiar with the former Revolv equipment line, Intertherm now carries that manufactured-home HVAC tradition forward. Its micro-channel A-coil design efficiently transfers indoor heat to the R454B refrigerant, while the factory-installed TXV regulates refrigerant flow to support consistent cooling performance.
- 4-ton cooling capacity: Supports approved air-conditioning systems with approximately 48,000 BTUs of nominal capacity.
- Cooling-only design: Intended for compatible air-conditioner combinations rather than heat-pump applications.
- R454B compatibility: Engineered for current R454B split-system equipment.
- Micro-channel construction: Supports efficient heat transfer through a compact indoor coil design.
- Factory-installed TXV: Adjusts refrigerant flow to help maintain proper system performance.
- Vertical A-coil configuration: Designed for compatible manufactured-home furnace and airflow arrangements.
- Uncased installation: Fits inside an approved furnace or coil cabinet without an additional outer casing.
The C85DAMX48U-B provides the indoor heat-transfer component needed for an approved 4-ton Intertherm cooling system. Because this model is designed for air-conditioning applications, a qualified HVAC professional should verify the outdoor condenser, furnace, airflow, and certified coil match before purchase.
Who installs the AC unit after I purchase it?
ACDirect does not yet provide installation services directly. However, most of our customers successfully arrange installation through local licensed HVAC contractors. These systems are designed for professional installation and typically include the components your installer will need.
Here’s how it works:
- Hire a licensed HVAC technician in your area
- Use platforms like Angi, Thumbtack, or a local HVAC directory to find reliable professionals
- Confirm your installer is experienced with the system type you’re purchasing
Note:
Please be aware if you choose to install HVAC equipment yourself and don’t possess proper HVAC licensing, you will void the manufacturer’s factory warranty. If you are capable of a factory-compliant installation yourself, you will need a licensed HVAC contractor to sign off on your work, fully confirming factory-compliant workmanship.
