- 3 ton - best for spaces between 1500 - 1800 sq ft depending on your home's insulation and your climate
- SEER2 rating helps consumers compare energy efficiency when choosing a new air conditioner. Higher SEER2 ratings mean significant utility savings. The federal minimum is 14 SEER2 with ratings into the 20 SEER2 range. A 20 SEER2 uses half the energy of a 10 seer much like MPG ratings for vehicles.
- If you have an indoor furnace, or air handler, along with an outdoor AC unit, this system will serve as a replacement for both.
- Best for cold climates and if you already have a gas furnace or a gas fuel supply already available.
- You'll need about 25-30 Btu's per sq. foot for warmer winter climates and about 35-50 Btu's per sq. foot for colder winter climates - highly dependent on construction type and insulation values.

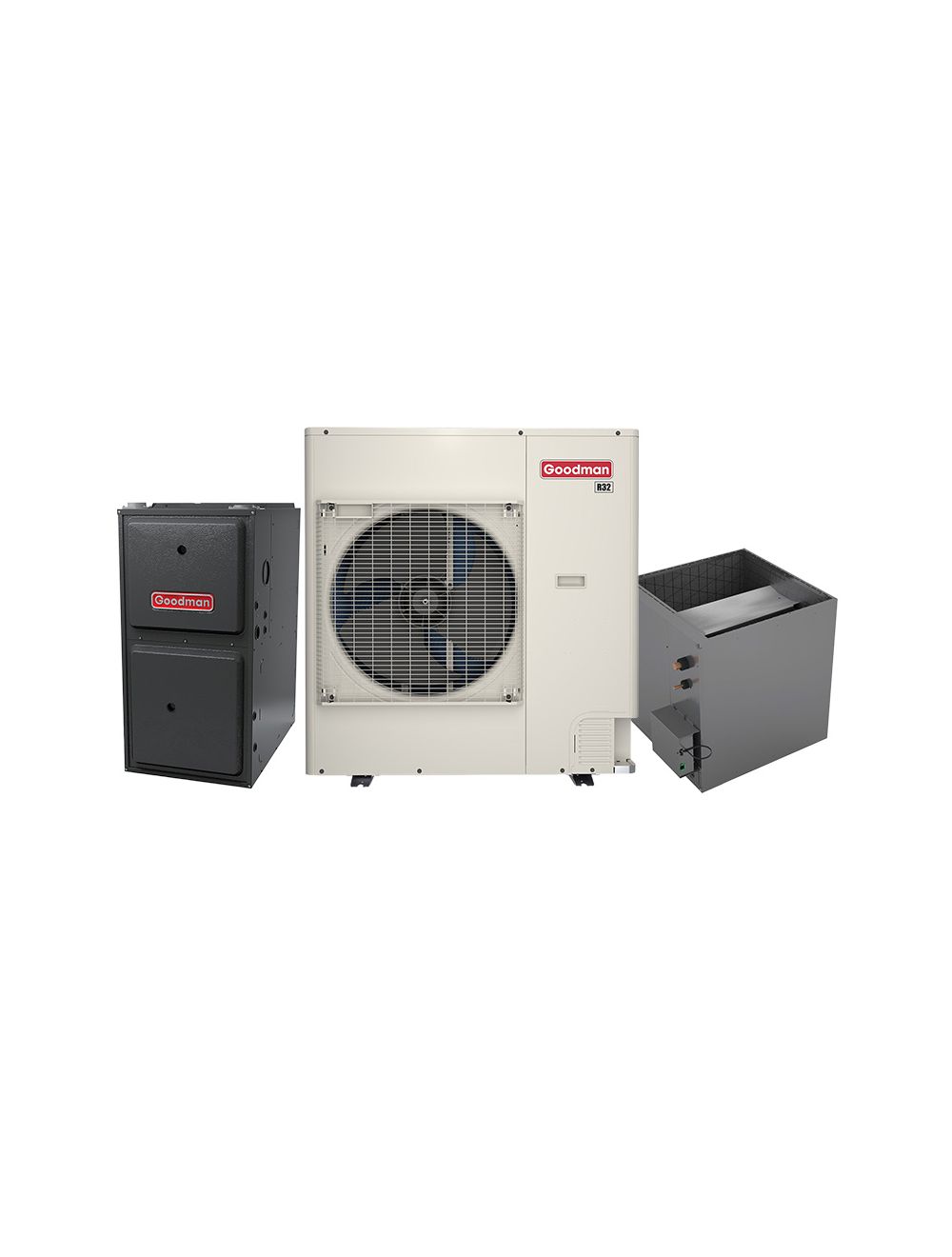

Goodman 3 Ton 18.5 SEER2 Variable-Speed Inverter AC & Gas Furnace System - Modulating, Variable-Speed 80000 BTU 97% AFUE Gas Furnace, Upflow, R32
- Condenser: GXV9SA3610
- Gas Furnace: GRVM970804CN
- Evaporator Coil: CAPEA4830C3
- Thermostat (Optional): Choose a compatible proprietary Goodman or Daikin communicating thermostat
Furnace BTU Sizing Tonnage Calculator
Heating Square Footage Range by Climate Zone
| Region 1 | Region 2 | Region 3 | Region 4 | Region 5 |
| 30 - 35 BTU's per square foot | 35 - 40 BTU's per square foot | 40 - 45 BTU's per square foot | 45 - 50 BTU's per square foot | 50 - 60 BTU's per square foot |
- 3 ton - best for spaces between 1500 - 1800 sq ft depending on your home's insulation and your climate
- SEER2 rating helps consumers compare energy efficiency when choosing a new air conditioner. Higher SEER2 ratings mean significant utility savings. The federal minimum is 14 SEER2 with ratings into the 20 SEER2 range. A 20 SEER2 uses half the energy of a 10 seer much like MPG ratings for vehicles.
- If you have an indoor furnace, or air handler, along with an outdoor AC unit, this system will serve as a replacement for both.
- Best for cold climates and if you already have a gas furnace or a gas fuel supply already available.
- You'll need about 25-30 Btu's per sq. foot for warmer winter climates and about 35-50 Btu's per sq. foot for colder winter climates - highly dependent on construction type and insulation values.
Free Shipping
Over $1500
*Excludes Commercial Products
DELIVERY TIME 3-10 BUSINESS DAYS
EXCLUDING WEEKENDS AND HOLIDAYS
ProfessionalU.S. Support
GUARANTEED LOWEST PRICES
FREE
SHIPPING
OVER $1500
*Excludes Commercial Products
DELIVERY TIME
3 - 10 BUSINESS DAYS
EXCLUDING WEEKENDS AND HOLIDAYS
PROFESSIONAL
U.S. SUPPORT
ADD TO CART FOR
GUARANTEED LOWEST PRICES
0% Interest
Orders $3000+ offered at checkout
No Credit Needed
Bad credit/no credit is OK - offered at checkout
Orders over $3000 get a
7 night luxury resort stay
Goodman 3 Ton Up to 19 SEER2 Variable-Speed Inverter Side Discharge AC Condenser - R32
Model Number
GXV9SA3610
Dimensions
37" W x 12-5/8" D x 39" H
Documents
Warranty
Parts: 10 years | Limited Replacement: 10 years
Goodman Horizontal 80000 BTU Gas Furnace - 97 % Efficient Modulating Variable-Speed ECM Gas Furnace Upflow / Horizontal | R32
Model Number
GRVM970804CN
Dimensions
21" W x 28-7/8" D x 34-1/2" H
Documents
Limited Warranty
Parts: 10 years | Limited Replacement: 10 years
Goodman 4 Ton 21" Wide Cased R32 Evaporator Coil With Internal EEV
Model Number
CAPEA4830C3
Dimensions
21" W x 21" D x 30" H
Documents
Limited Warranty
Parts: 10 years
Goodman GTST Connected Thermostat
Model Number
GTST-CW-WH-A
Dimensions
3.3" W x 3.3" H x 1.04" D
Documents
Limited Warranty
Parts: 5 years
Daikin One Touch Smart Thermostat
Model Number
DTST-TOU-A
Dimensions
11-9/16" W x 13-3/4" D x 7-1/16" H
Documents
Limited Warranty
Parts: 12 years
AHRI Number
217282156
Why Buy This AC & Gas Furnace System?
- Designed to Work Together: This complete heating and cooling system pairs the GXV6S inverter air conditioner with a CAPEA indoor coil and GRVT80 two-stage gas furnace for matched performance and smoother operation.
- Consistent, Even Comfort: The variable-speed blower motor and inverter-driven AC adjust automatically to reduce temperature swings and improve humidity control.
- Energy-Saving Operation: Inverter technology and a two-stage gas valve help the system run at lower speeds most of the time, reducing energy use compared to traditional single-stage units.
- Advanced Refrigerant Control: The CAPEA indoor coil includes a factory-installed electronic expansion valve (EEV) for precise cooling performance and optimized R-32 efficiency.
- Built for Reliable Upflow Installation: Engineered specifically for upflow applications, this configuration ensures proper airflow alignment and long-term durability.
Goodman 3 Ton 19 SEER2 Variable-Speed Side Discharge AC Condenser – R32
Advanced Inverter Cooling for Consistent Home Comfort
Designed for mid-sized homes, the Goodman GXV9SA3610 provides powerful yet efficient cooling with a variable-speed inverter compressor. This system helps reduce temperature swings, improves humidity control, and operates quietly. The side-discharge cabinet saves space, and R-32 refrigerant delivers modern performance with a lower environmental footprint.
- Up to 19 SEER2 high-efficiency performance
- Variable-speed inverter technology for smooth operation
- Improved humidity control and comfort consistency
- Compact side-discharge design
- R-32 refrigerant for next-generation efficiency
Why Choose This AC Condenser?
- Lower Energy Bills: Variable-speed inverter technology adjusts cooling output as needed, helping reduce energy use compared to traditional single-stage units.
- More Consistent Comfort: The inverter-driven AC condenser runs longer at lower speeds to minimize temperature swings and improve indoor comfort.
- Quiet Outdoor Operation: Advanced sound-reducing design and quiet operation help keep outdoor noise levels low.
- Space-Saving Side Discharge Design: The compact side-discharge condenser allows flexible installation in tight spaces and modern home layouts.
- Environmentally Responsible Cooling: Uses R-32 refrigerant, which offers improved efficiency and a lower environmental impact compared to older refrigerants.
GRVM97 R32 Overview
Features
- Integrated communicating ComfortBridge™ Technology
- Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application
- Heavy-duty aluminized-steel tubular heat exchanger
- Stainless-steel secondary heat exchanger
- Self-calibrating modulating gas valve auto-configure for each installation
- Durable Silicon Nitride igniter
- Quiet variable-speed induced draft blower
- Self-diagnostic control board with constant memory fault code history output to a dual 7-segment display
- Color-coded low-voltage terminals with provisions for electronic air cleaner
- Efficient and quiet variable-speed airflow system gently ramps up or down according to heating or cooling demand
- Multiple continuous fan speed options offer quiet air circulation
- Auto-Comfort and enhanced dehumidification modes available
- All models comply with California 40 ng/J Low NOx emissions standard
- Can not be installed in California’s South Coast Air Quality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVAPCD).
- AHRI Certified; ETL Listed
Cabinet Features
- Designed for multi-position installation —
- GRVM97: upflow, horizontal left or right
- GDVM97: downflow, horizontal left or right
- Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
- Easy-to-install top venting with optional side venting
- Convenient left or right connection for gas and electrical service
- Cabinet air leakage (QLeak) ≤ 2%
- Heavy-gauge steel cabinet with durable finish
- Fully insulated heat exchanger and blower section
- Airtight solid bottom or side return with easy-cut tabs for effortless removal in bottom air-inlet applications
Goodman CAPEA4830C3 4 Ton R-32 Cased Upflow/Downflow Evaporator Coil – 21" Cabinet
Large-Capacity Aluminum Coil with Factory-Installed EEV
The Goodman CAPEA Series indoor evaporator coil is engineered for high-efficiency R-32 air conditioning and heat pump systems. Featuring an all-aluminum coil design and a factory-installed Electronic Expansion Valve (EEV), this coil delivers precise refrigerant control, improved efficiency, and dependable long-term performance. Designed for upflow or downflow installation, the CAPEA coil integrates seamlessly with compatible Goodman and Daikin outdoor units for optimized system operation.
- Optimized for R-32 refrigerant systems
- Factory-installed Electronic Expansion Valve (EEV)
- All-aluminum evaporator coil construction
- Upflow and downflow installation versatility
- Rust-resistant thermoplastic drain pan with secondary drain connections
- Foil-faced insulation to reduce cabinet condensation
GTST Overview
The Goodman GTST connected thermostat is designed to deliver the ultimate inverter experience when used with the Goodman SD system. Compatible with all Goodman communicating unitary equipment, it can connect to the Goodman Home app via Wi-Fi, allowing control from an iOS or Android phone or tablet. Additionally, the GTST supports voice control with Amazon Alexa or Google Assistant. For enhanced efficiency and comfort, homeowners can program up to four schedule events each day on a seven-day schedule.
Standard Features
- Compact, non-intrusive design suitable for most interior environments
- Multifunction push buttons labeled for mode, fan, set-point up, set-point down
- Wi-Fi-enabled connected thermostat that works with Goodman GTST home app (iOS and Android)
- Voice control by Amazon Alexa and Google Assistant
- Programmable schedule
- Built-in temperature and humidity sensors
- Indoor unit Control: Mode (Auto/Heat/Cool/Emergency Heat), Setpoint (Dual/Single), Fan Speed, Fan On/Auto (with minimum run time)
- LED Mode indicator for heating and cooling
- Dehumidification function (setup with Goodman GTST home app)
- Error and maintenance notifications
- Control and comfort functions: Away mode and geo-fencing
- Over-the-air software update capable (requires Wi-Fi connection)
- Compatible with Cloud Services (Future)
- Setup is possible within the cloud services app, via the commissioning tool. Setup using buttons is possible, but not recommended.
Technical Specifications
- Backlit, 3.5 inch MVA TFT LCD display
- Bi-directional communications protocol for controlling HVAC system
- Multi-language support: English, Spanish, French (Goodman GTST home app only)
- 1 Auxiliary output configurable as a secondary heat source, dehumidifier. or humidifier
- FCC Certified/UL Listed
- An optional trim plate (PSPAC-WPM-L) is available.
One Touch Overview - DTST-TOU-A
The Daikin One Touch smart thermostat is the latest addition to the Daikin One ecosystem, joining the Daikin One smart thermostat as a control solution for Daikin's communicating unitary equipment.
Standard Features
- Simple, elegant industrial design
- Capacitive touchscreen user interface
- Wi-Fi-enabled smart thermostat with iOS and Android app control
- Voice control by Amazon Alexa and Google Assistant
- Control and comfort functions: Away mode, geo-fencing
- Outdoor environment monitoring: outdoor temperature, outdoor humidity, and weather forecast
- Compatible with Daikin One home air monitor for IAQ visualization
- Error and service notifications
- Multi-language support: English, Spanish, French
- Programmable 4-event schedule with adjustable hold function
- Compatible with Daikin One cloud services
- Open API compatible for home control systems such as Control4 and Crestron
- Compliant to California Title 24 (OCST listed), FCC Certified, and UL Listed
Technical Specifications
- Capacitive touch screen
- Backlit, 3.5 inch MVA TFT LCD display
- Bi-directional communications protocol for controlling HVAC system
- Bubble level (to aid installation)
- 640 × 480 pixels × 24 bit RGB (full color screen)
- Wi-Fi
- Operation Temperature: 32°F to 120°F
Who installs the AC unit after I purchase it?
ACDirect does not yet provide installation services directly. However, most of our customers successfully arrange installation through local licensed HVAC contractors. These systems are designed for professional installation and typically include the components your installer will need.
Here’s how it works:
- Hire a licensed HVAC technician in your area
- Use platforms like Angi, Thumbtack, or a local HVAC directory to find reliable professionals
- Confirm your installer is experienced with the system type you’re purchasing
Note:
Please be aware if you choose to install HVAC equipment yourself and don’t possess proper HVAC licensing, you will void the manufacturer’s factory warranty. If you are capable of a factory-compliant installation yourself, you will need a licensed HVAC contractor to sign off on your work, fully confirming factory-compliant workmanship.
