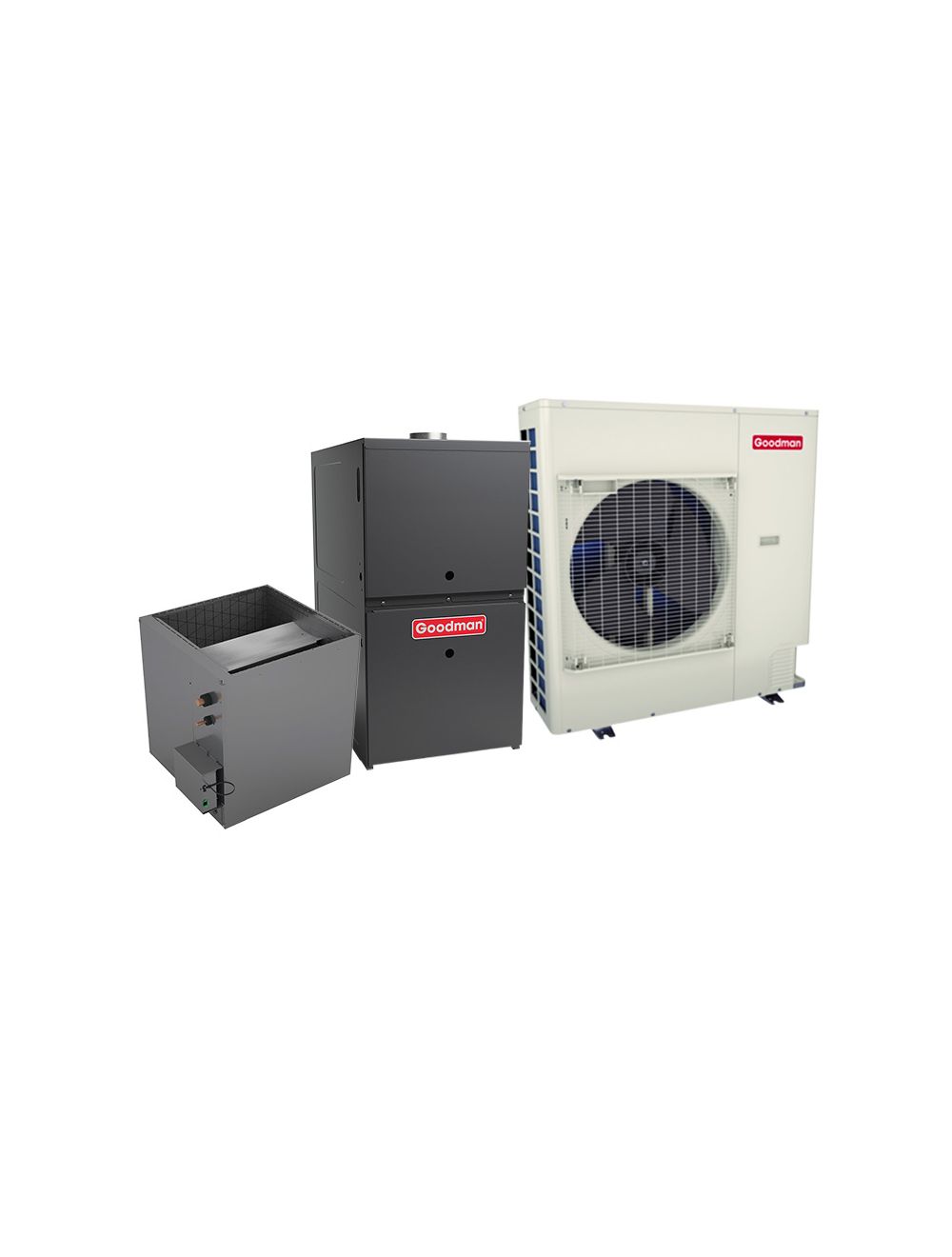

Goodman 5 Ton 15.2 SEER2 Dual Fuel Side Discharge Heat Pump & Gas Furnace Hybrid System - Inverter Heat Pump, 100,000 BTU 2-Stage Variable-Speed 96% AFUE Upflow , R32

GRVT96 Overview

Standard Features

• Integrated communicating ComfortBridge™ Technology
• Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application
• Heavy-duty aluminized-steel tubular heat exchanger
• Stainless-steel secondary heat exchanger
• Two-stage gas valve provides quiet, economical heating
• Durable Silicon Nitride igniter
• Quiet two-speed induced draft blower
• Compatible with any single-stage thermostat
• Self-diagnostic control board with constant memory fault code history output to a triple 7-segment display
• Color-coded low-voltage terminals with provisions for electronic air cleaner
• Efficient and quiet variable-speed airflow system gently ramps up or down according to heating or cooling demand
• Multiple continuous fan speed options offer quiet air circulation
• Auto-Comfort and enhanced dehumidification modes available
• All models comply with California 40 ng/J Low NOx emissions standard
• Can no longer be installed in California’s South Coast Air Quality Management District (SCAQMD) on or after October 1, 2019.

Cabinet Features

• Designed for multi-position installation — upflow, horizontal left or right
• Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
• Easy to install top venting with optional side venting
• Convenient left or right connection for gas and electrical service
• Cabinet air leakage (QLeak) ≤ 2%
• Heavy-gauge steel cabinet with durable baked-enamel finish
• Fully insulated heat exchanger and blower section
• Airtight solid bottom or side-return with easy-cut tabs for effortless removal in bottom air-inlet applications

Goodman CAPEA6030C3 5 Ton R-32 Cased Upflow/Downflow Evaporator Coil – 21" Cabinet

Maximum-Capacity Aluminum Coil with Precision Electronic Expansion Valve

The Goodman CAPEA Series indoor evaporator coil is engineered for high-efficiency R-32 air conditioning and heat pump systems. Featuring an all-aluminum coil design and a factory-installed Electronic Expansion Valve (EEV), this coil delivers precise refrigerant control, improved efficiency, and dependable long-term performance. Designed for upflow or downflow installation, the CAPEA coil integrates seamlessly with compatible Goodman and Daikin outdoor units for optimized system operation.

• Optimized for R-32 refrigerant systems
• Factory-installed Electronic Expansion Valve (EEV)
• All-aluminum evaporator coil construction
• Upflow and downflow installation versatility
• Rust-resistant thermoplastic drain pan with secondary drain connections
• Foil-faced insulation to reduce cabinet condensation

GTST Overview

The Goodman GTST connected thermostat is designed to deliver the ultimate inverter experience when used with the Goodman SD system. Compatible with all Goodman communicating unitary equipment, it can connect to the Goodman Home app via Wi-Fi, allowing control from an iOS or Android phone or tablet. Additionally, the GTST supports voice control with Amazon Alexa or Google Assistant. For enhanced efficiency and comfort, homeowners can program up to four schedule events each day on a seven-day schedule.

Standard Features

• Compact, non-intrusive design suitable for most interior environments
• Multifunction push buttons labeled for mode, fan, set-point up, set-point down
• Wi-Fi-enabled connected thermostat that works with Goodman GTST home app (iOS and Android)
• Voice control by Amazon Alexa and Google Assistant
• Programmable schedule
• Built-in temperature and humidity sensors
• Indoor unit Control: Mode (Auto/Heat/Cool/Emergency Heat), Setpoint (Dual/Single), Fan Speed, Fan On/Auto (with minimum run time)
• LED Mode indicator for heating and cooling
• Dehumidification function (setup with Goodman GTST home app)
• Error and maintenance notifications
• Control and comfort functions: Away mode and geo-fencing
• Over-the-air software update capable (requires Wi-Fi connection)
• Compatible with Cloud Services (Future)
• Setup is possible within the cloud services app, via the commissioning tool. Setup using buttons is possible, but not recommended.

Technical Specifications

• Backlit, 3.5 inch MVA TFT LCD display
• Bi-directional communications protocol for controlling HVAC system
• Multi-language support: English, Spanish, French (Goodman GTST home app only)
• 1 Auxiliary output configurable as a secondary heat source, dehumidifier. or humidifier
• FCC Certified/UL Listed
• An optional trim plate (PSPAC-WPM-L) is available.

One Touch Overview - DTST-TOU-A

The Daikin One Touch smart thermostat is the latest addition to the Daikin One ecosystem, joining the Daikin One smart thermostat as a control solution for Daikin's communicating unitary equipment.

Standard Features

• Simple, elegant industrial design
• Capacitive touchscreen user interface
• Wi-Fi-enabled smart thermostat with iOS and Android app control
• Voice control by Amazon Alexa and Google Assistant
• Control and comfort functions: Away mode, geo-fencing
• Outdoor environment monitoring: outdoor temperature, outdoor humidity, and weather forecast
• Compatible with Daikin One home air monitor for IAQ visualization
• Error and service notifications
• Multi-language support: English, Spanish, French
• Programmable 4-event schedule with adjustable hold function
• Compatible with Daikin One cloud services
• Open API compatible for home control systems such as Control4 and Crestron
• Compliant to California Title 24 (OCST listed), FCC Certified, and UL Listed

Technical Specifications

• Capacitive touch screen
• Backlit, 3.5 inch MVA TFT LCD display
• Bi-directional communications protocol for controlling HVAC system
• Bubble level (to aid installation)
• 640 × 480 pixels × 24 bit RGB (full color screen)
• Wi-Fi
• Operation Temperature: 32°F to 120°F
